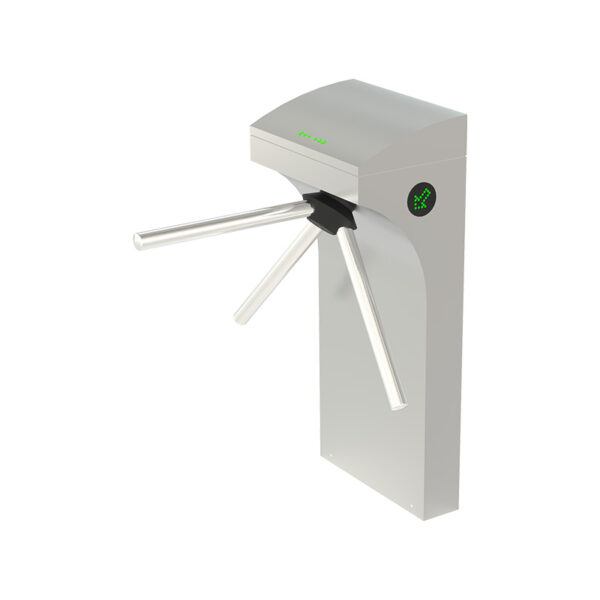

OZAK Single Side Tripod
OZAK Single Side Tripod are widely used in factories, buildings, amusement parks, stadiums etc to restrict & control the unauthorized access.
OZAK Single Side Tripod
OZAK Single Side Tripod are widely used in factories, buildings, amusement parks, stadiums etc to restrict & control the unauthorized access. eTOP provides a wide range of Tripods in high quality materials which is made out of 304 grade stainless steel for the indoor & outdoor environment. For special customized application we do offer our turnstiles & tripods in 316 high grade stainless steel & these products can be installed in marine applications, near the sea shore where the climatic conditions are much extreme. Our outdoor turnstiles/tripods are water protected hence they can be installed even for outdoor applications.
eTop, Leading supplier in united Arab Emirates and South African Countries (Nigeria, South Africa, Sudan, Kenya, Uganda, Somalia, South Sudan, Central African Republic, Ethiopia, Tanzania, Saudi Arabia, Oman, Kuwait, Bahrain, and Qatar) for Wacom Signature pad, Fargo Card Printer, Javelin Card Printer, OZAK Turnstile and Speed gates.
Arms : Ø40 mm x 2 mm 304 Grade stainless steel (Opt. 316 – Grade Stainless Steel).
Body Features : 2 mm 304-Grade (Opt. 316-Grade) stainless steel with brushed (Opt. Satin) surface.
Operation Temperature, Humidity,IP Rating, MCBF : -20°C to +68°C (-50°C with optional heater unit), RH 95% non-condensing / IP 54 Outdoor Model (Opt. IP 56 ) / 1M Cycles.
Control System : All inputs are opto-coupler protected. Compatible with all access control systems that provide dry contact or grounding outputs. Optional RS232/RS485/TCP IP control modules is available.
Operation : Manually operated bi-directional system (optional motorized) with dip switch selectable operational modes including controlled access on both sides, one side free (exit or entry), other side controlled access and access restriction modes.
Emergency Mode : System allows free passage in emergency mode and in case of power failure.
Flow Rate : Capacity of Mechanism (Manual System): max. 97 passages/minute, Nominal: ~20 passages/minute
Capacity of Mechanism (Motorized System): max. 48 passages/minute, Nominal: ~16 passages/minute.
Standard Features : Direction and status indicators on top and sides.
Optional Accessories and Applications : Remote control units, interface unit for PC, RS485, RS232 and LAN, counter, audio-messaging system, motor driven unit, automatic drop (retractable) arm, alarm sensor, heater positive unit, coin slot/intelligent coin system and coin box, card reader pole, pipe barrier (Separator), floor mounting plate, customised top covers to accommodate various accessories.
