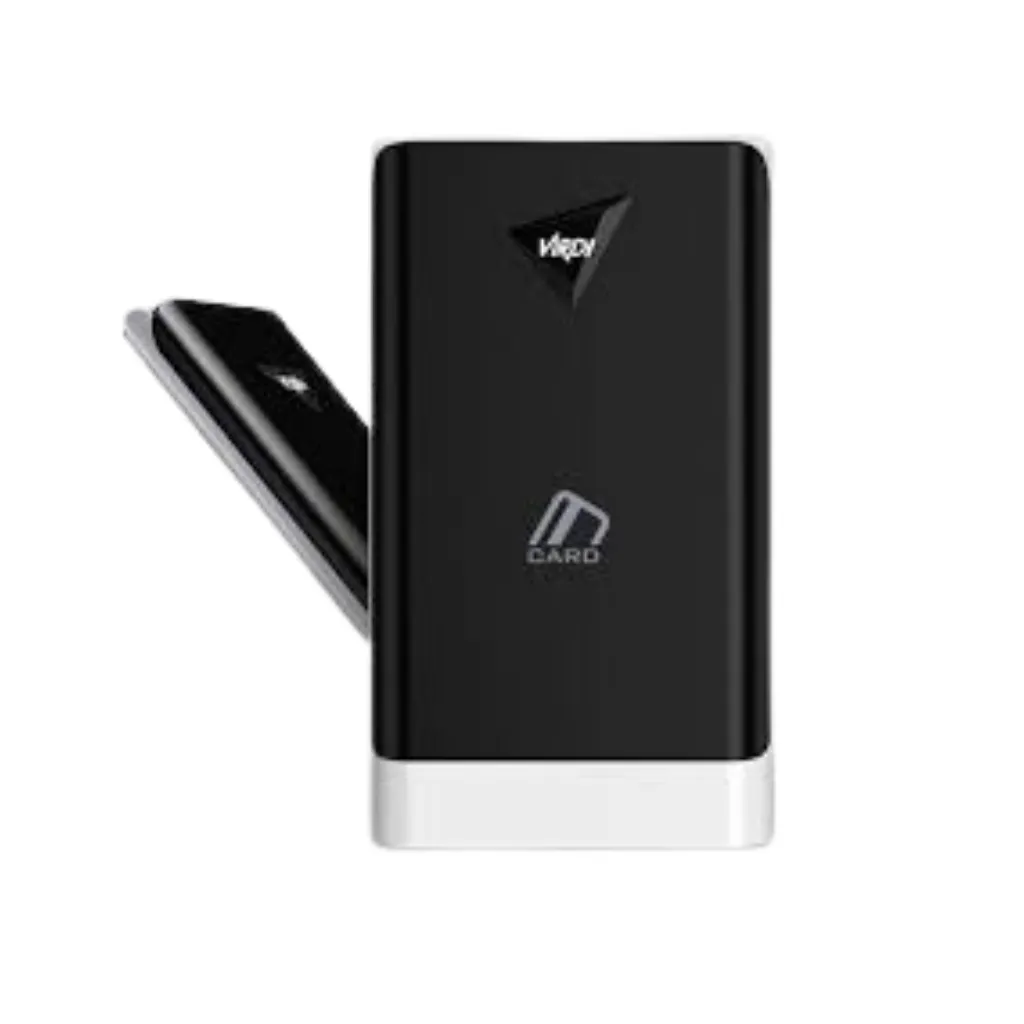

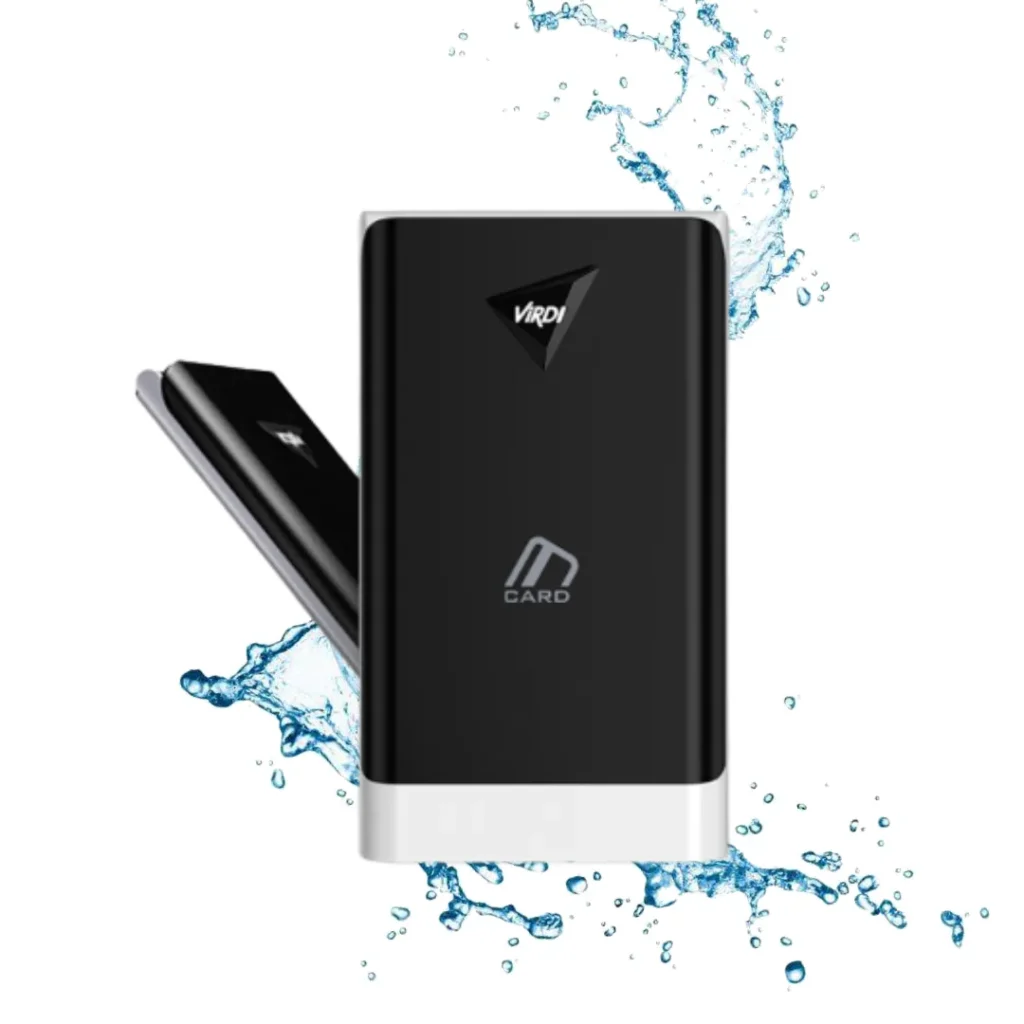

ViRDI VS-R20D Dummy Card Reader
Designed for MCP040 , auto sensing, dual-frequency reader.
Virdi VS-R20D dummy smart card reader, a secondary (auxiliary) RFID smart card reader that can be used in combination with ViRDI access terminals for doors, outdoor as well as indoor doors.
- Used as a secondary smart card reader ViRDI access control terminals
- Offers compatibility with both 25khz cards and 13.56Mhz cards
- Aesthetically appealing
Tags: Fingerprint Sensors
The terminal is a ruggedized, vandal proof housing that is protected against the elements and is covered with an IP rated ingress protection enclosure.
The ViRDI AC-5000 IK can support 20,000 users per terminal. Like all of the other VirDI terminals it includes its patented finger print scanning algorithms and multi-frequency card reading capability. It can also tell the difference between a real live finger and a fake finger (made of gelatin, rubber, silicone, paper etc). The terminal also supports POE for time and attendance function. The terminal can also read 125KHz and 13.56MHz credentials as well as Smart Card, Felica, Mifare, DESFire and HID Prox/iClass cards such as credit card size cards and other types of cards.
Time and attendance functions can also be supported via POE connection on this Virdi fingerprint recognition terminal. The ViRDI AC-5000 IK fingerprint recognition terminal supports reading of either 125KHz or 13.56MHz credentials and Smart Card, Felica, Mifare, DESFire and HID Prox/iClass cards. The ViRDI AC-5000 IK terminal is an IP65 rated IK grade Virdi fingerprint recognition terminal which supports 20000 Users, 40,000 (1:1) fingerprints and 64,000 logs.
| Specification | Details |
| CPU | ARM, 533MHz CPU |
| Memory | 128MB RAM + 32MB Flash Memory |
| LCD | 2.8″ Color LCD |
| Max Users | 20,000 |
| Power Consumption | 12V, Max 350mA (4.2W) |
| Log Capacity | 64,000 |
| Communication | TCP/IP, Wiegand In/Out, RS485, RS232 |
| Certificates | KC, CE, FCC, RoHS |
| Dimensions | 88 × 175 × 43.5 mm |
| RFID Card Option | 125KHz EM, 13.56MHz Smart Card, Felica, DESFire, HID Prox, HID iClass, SAM Slot |
GET A FREE QUOTE
ViRDI VSR20D RF – 125KHz RFID Card Reader for Access Control
The ViRDI VSR20D RF is a slim and durable 125KHz RFID card reader designed for secure access control applications. Engineered for seamless integration with ViRDI access control terminals and controllers, the VSR20D RF provides fast card authentication and reliable credential reading for offices, commercial buildings, warehouses, residential communities, and industrial facilities.
Featuring an IP65-rated weatherproof enclosure, the reader is suitable for both indoor and outdoor installations. Its support for RS-485 (OSDP) and Wiegand communication protocols enables easy integration with existing access control systems while ensuring secure data transmission. The compact design and high-visibility LED indicators make the VSR20D RF an ideal solution for organizations looking for a dependable RFID door access reader.
Key Features
- 125KHz RFID Proximity Card Reader
- Compatible with ViRDI Controllers and Access Terminals
- OSDP RS-485 and Wiegand Communication
IP65 Dustproof and Waterproof Protection
Slim Design for Easy Installation
Multi-Color LED Status Indicators
Suitable for Indoor and Outdoor Access Control Systems
ViRDI VSR20D SC 13.56MHz – MIFARE Smart Card Reader
The ViRDI VSR20D SC 13.56MHz is a high-performance smart card reader designed for secure credential-based access control systems. Supporting 13.56MHz smart card technologies including MIFARE and DESFire, the reader offers enhanced security and flexible integration for modern access management applications.
Built for demanding environments, the VSR20D SC features an IP65-rated housing that protects against dust and water ingress, ensuring reliable operation in both indoor and outdoor installations. The reader communicates through OSDP RS-485 and Wiegand interfaces, making it suitable for enterprise access control, government facilities, educational institutions, healthcare environments, and corporate security systems.
Key Features
- 13.56MHz Smart Card Reader
- Supports MIFARE and DESFire Credentials
- OSDP RS-485 Secure Communication
- Wiegand Output for Third-Party Integration
- IP65 Outdoor-Rated Design
- Slim and Modern Reader Profile
- LED Status Indicators for User Feedback
