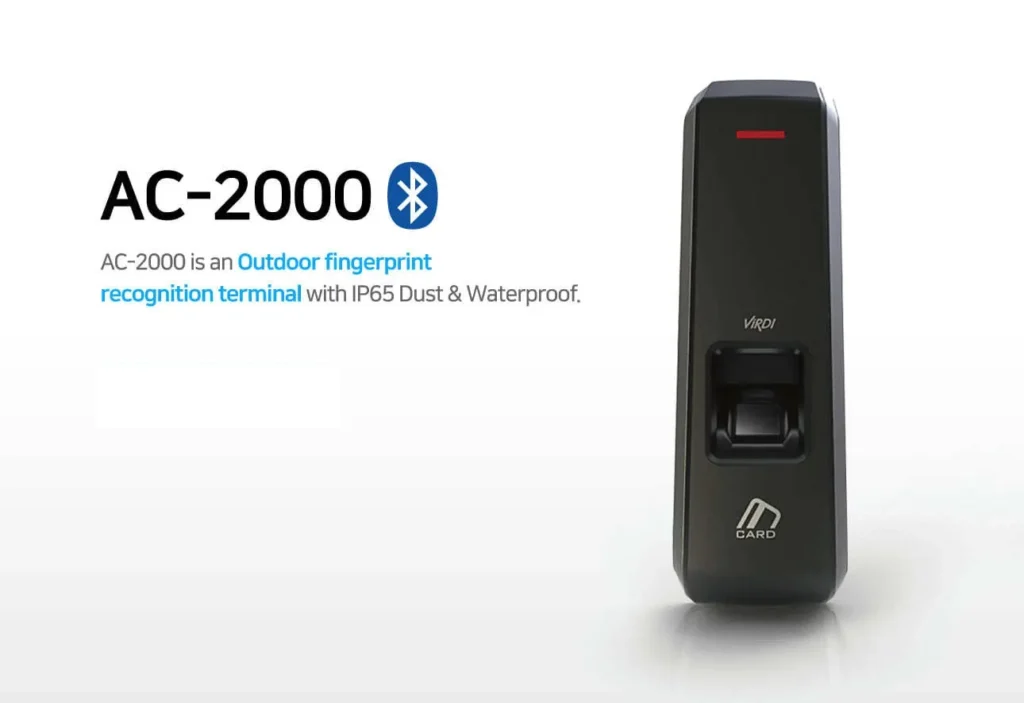

ViRDI AC2000 Outdoor Fingerprint recognition Terminal
The ViRDI AC-2000 is a versatile and scalable outdoor fingerprint recognition Terminal for access control. The reader is equipped with an IP65 Dust & Waterproof protection standard and can be used in harsh climates.
- IP65 Dust/Waterproof Protection
- Live Fingerprint Detection Embedded
- Fingerprint & EM 125Khz Card (or Mifare 13.56Mhz Card)
- User Capacity : 1,500, Finger Capacity: 10000
- TCP/IP Server Communitcation
- No LCD, No Function Key
Tags: Fingerprint Recognition
AC-2000 Outdoor Fingerprint Recognition Terminal. With a 125KHz or 13.56MHz card reader, the AC-2000 terminal also supports Bluetooth MobileCard authentication. IP65 Dust & Waterproof protection, this outdoor terminal is suitable for harsh outdoor environment. The free standing compact finger print reader is a versatile and scalable biometric terminal, allowing for the simple addition of users to a system. It can be used as part of a networked access control system or as a 3rd party access control system. The AC-2000 terminal includes a built in fake finger and live finger detection algorithm. It can be set to 1:1 or 1:N matching. The terminal communicates with the access control controller via Weigand I/O or an RS485 (OSDP) module.
The AC-2000 Terminal comes with Virdi’s patented fake finger and live finger detection program, which can detect and reject any fake prints made of any material including silicone, rubber, film, paper and gelatine etc. The Terminal comes with a standard 64 MB of memory which can be further extended up to 32MB. ViRDI AC-2000 Terminal is available from eTOP, for all Virdi Biometric Access Control Systems and Time & Attendance Solutions.
| Specification | Details |
| Model | ViRDI AC-2000 |
| Variants | AC-2000 RF (125KHz RFID), AC-2000 SC (13.56MHz Smart Card) |
| Authentication Methods | Fingerprint, RFID Card, Smart Card, Bluetooth Mobile Credential |
| Fingerprint Sensor | Optical Sensor |
| Fingerprint Resolution | 500 DPI |
| Live Finger Detection | Yes (Patented Fake Finger Detection) |
| Dust & Water Protection | IP65 Rated |
| User Capacity | Up to 10,000 Users |
| Fingerprint Capacity (1:1) | 10,000 Templates |
| Fingerprint Capacity (1:N) | 1,500 Users |
| Fingerprint Templates | 20,000 (1:1), 3,000 (1:N) |
| Maximum Fingerprints per User | 10 |
| Maximum Templates per Finger | 2 |
| Event Log Capacity | 51,000 Logs |
| Card Technology (RF) | 125KHz EM RFID |
| Card Technology (SC) | 13.56MHz Smart Card / MIFARE |
| Bluetooth Support | Yes (BLE Mobile Access) |
| Mobile Credential Support | Yes |
| TCP/IP Communication | Yes |
| RS-485 Communication | Yes (OSDP Supported) |
| Wiegand IN | Yes |
| Wiegand OUT | Yes |
| RS-232 | No |
| Wi-Fi | Not Supported |
| Display | No LCD Display |
| Keypad | No |
| Built-in Camera | No |
| Door Phone Interface | No |
| Operating Temperature | -20°C to +60°C |
| Sensor Reading Area | 14.8 × 17.9 mm |
| Dimensions (W × H × D) | 58 × 187.9 × 51.6 mm |
| FRR (False Rejection Rate) | 0.10% |
| FAR (False Acceptance Rate) | 0.00% |
| Power Supply | 12V DC |
| Installation Type | Indoor & Outdoor |
| Applications | Access Control, Time Attendance, Workforce Management, Building Security |
| Third-Party Integration | Supported via Wiegand and OSDP |
| Operating Software | UNIS Access Control Software |
GET A FREE QUOTE
ViRDI AC2000RF – Outdoor RFID Fingerprint Access Control Terminal
The ViRDI AC2000RF outdoor RFID fingerprint access control terminal is a ruggedized reader that can be used in harsh environment and withstand weather conditions and rough handling. The terminal is equipped with a 125KHz RFID card reader and fingerprint scanner. It can read and identify users quickly and accurately. It also includes an integrated Bluetooth module to support authentication using smart-phones. The terminal can be used for a variety of applications including construction sites, industrial facilities, logistics centers, warehouses, residential communities and commercial buildings. The cabinet of the outdoor terminal is made of IP65 rated material, and is dust and water proof. The terminal can operate in extreme temperatures, making it a perfect choice for organizations that require a reliable security solution for outdoor access control.
ViRDI AC2000RF, ViRDI’s biometric access control solution that meets the harsh environments of construction sites, warehouses, factories, stores, etc. of industrial, logistic and retail sectors. The weatherproof IP65 rated exterior is neither affected by wet weather nor by a very dusty environment and can operate in extreme temperatures. It is capable of reading Stebilex Systems MobileCard credentials with the help of the Bluetooth technology.
Standalone and Network based Access Control Installation: ViRDI AC2000RF can be installed for access control system in both standalone mode as well as in network based access control environment. It supports Wiegand, RS-485 (OSDP), as well as TCP/IP communication for integration with third party access control system. ViRDI’s fingerprint recognition technology is a strong platform to recognize a large number of users and deliver quick verification, anti-spoofing protection, and a robust access control environment to manage entry of individuals and assets in organization.
Key Features of ViRDI AC2000RF
- 125KHz RFID Proximity Card Reader
- Outdoor IP65 Dust and Water Protection
- Bluetooth Mobile Credential Support
- Advanced Fingerprint Authentication
- Fake Finger Detection Technology
- OSDP RS-485 and Wiegand Communication
- Supports Up to 10,000 Users
- Compact Design for Indoor and Outdoor Installation
- Fast User Verification and Access Authorization
- Suitable for Access Control and Workforce Management
ViRDI AC2000SC (Outdoor Smart Card Fingerprint Access Control Reader) by ViRDI
ViRDI’s AC-2000 SC is a smart card reader / fingerprint scanner terminal that supports a wide variety of smart card credentials including MIFARE and other 13.56 MHz frequency cards. With its weather-resistant housing, the ViRDI AC2000SC is ideal for use as an outdoor access control reader or for use in high traffic indoor locations. Suitable for a variety of industries including government, healthcare, financial, educational and enterprise, the ViRDI AC2000SC is the perfect solution for any site that requires advanced smart card and fingerprint access control.
Supporting MIFARE and 13.56MHz other secure smart card credentials, this access control terminal is the perfect choice for the following organizations: Government, Hospitals, Banks, Schools, Universities, and corporate offices. Because it’s IP65 rated the ViRDI AC2000SC can withstand the outdoor weather and can be installed both inside and outside of buildings.
The ViRDI AC2000SC is an outdoor smart card fingerprint access control reader. The weather resistant design of the terminal makes it possible to use it both indoors and out. ViRDI AC2000SC has powerful biometric engine that can read genuine fingerprints and fake fingers printed on fake fingers with its advanced live finger detection technology. ViRDI AC2000SC also supports live finger detection and central management of user access rights, third party system integration and it is highly scalable and can be used in multiple locations.
Key Features of ViRDI AC2000SC
- 13.56MHz Smart Card Reader
- Compatible with MIFARE Card Technology
- Outdoor IP65 Protection Rating
- Bluetooth Mobile Access Support
- Fingerprint Authentication with Live Finger Detection
OSDP, RS-485 and Wiegand Integration - Supports Up to 10,000 Users
- Secure Multi-Factor Authentication Options
- Suitable for High-Security Access Control Projects
- Seamless Integration with Enterprise Security Systems
What is the ViRDI AC-2000 and where is it used?
The ViRDI AC-2000 is an IP65-rated outdoor fingerprint access control terminal designed for secure entry management and employee attendance tracking. It is commonly used in offices, factories, warehouses, residential communities, schools, hospitals, and industrial facilities where reliable biometric authentication is required.
Does the ViRDI AC-2000 support RFID cards, smart cards, and mobile access?
Yes. The ViRDI AC-2000 RF supports 125KHz RFID cards, while the ViRDI AC-2000 SC supports 13.56MHz smart cards such as MIFARE. Both models support Bluetooth mobile credentials, allowing users to gain access using their smartphones.
Is the ViRDI AC-2000 suitable for outdoor access control systems?
Absolutely. The AC-2000 is designed with an IP65 dustproof and waterproof rating, making it suitable for outdoor installations in harsh weather conditions. It operates reliably in environments exposed to rain, dust, humidity, and temperature fluctuations.
What is the difference between ViRDI AC-2000 RF and ViRDI AC-2000 SC?
The primary difference is the credential technology. AC-2000 RF uses 125KHz RFID proximity cards, making it ideal for standard access control applications. AC-2000 SC uses 13.56MHz smart cards, offering enhanced security and support for advanced card technologies such as MIFARE. Organizations with higher security requirements typically choose the AC-2000 SC.
Why choose ViRDI AC-2000 over a standard fingerprint access control system?
The ViRDI AC-2000 combines fingerprint recognition, card authentication, Bluetooth mobile access, fake finger detection, IP65 protection, and OSDP communication in a single device. This makes it a more secure and future-ready solution compared to conventional fingerprint readers that only support basic biometric authentication.
Is the ViRDI AC-2000 suitable for access control systems in the UAE?
Yes. The ViRDI AC-2000 is well suited for UAE environments due to its IP65-rated dustproof and waterproof design, making it reliable in outdoor locations exposed to heat, dust, and humidity. It is widely used across offices, warehouses, factories, residential communities, educational institutions, and commercial facilities in the UAE for biometric access control and employee attendance management.
