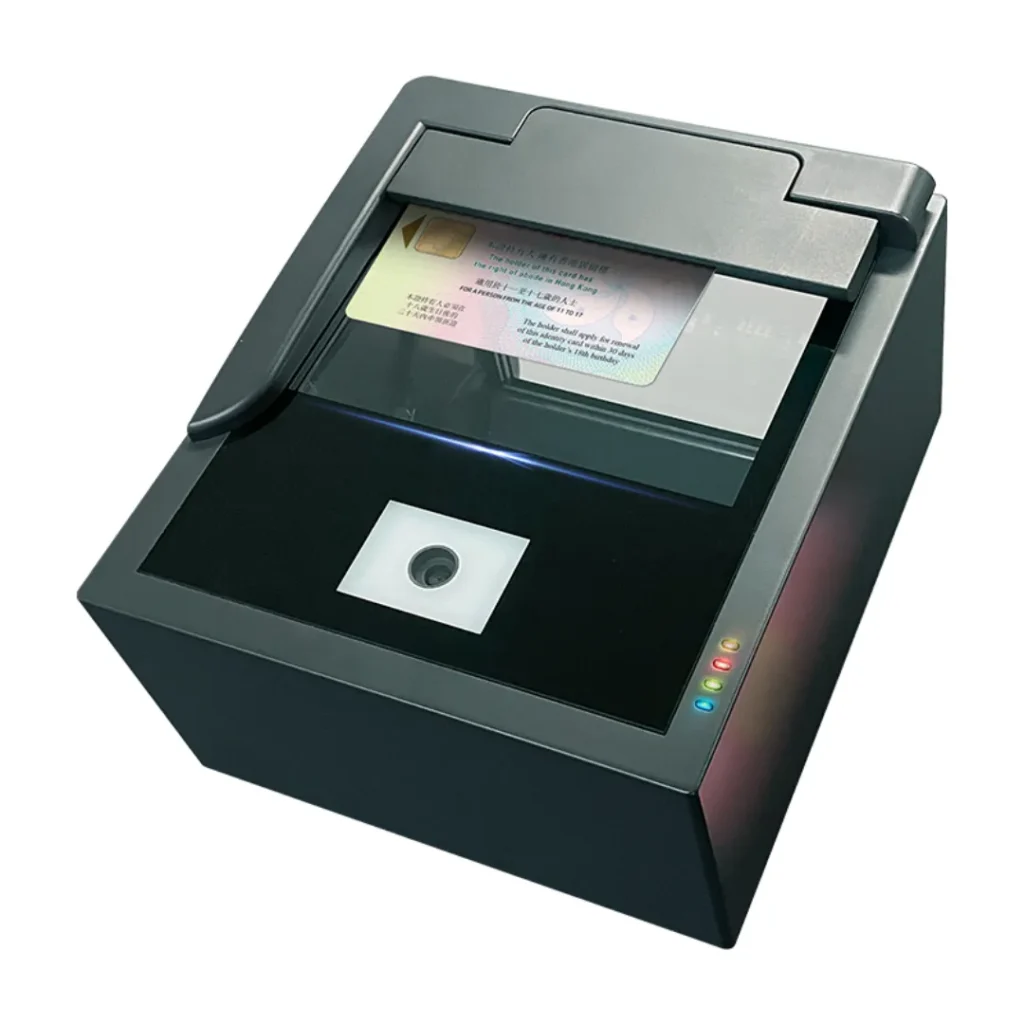

KR530(B) Kiosk Passport Scanner
It is a kiosk-ready, high-precision document reader engineered for self-service stations and automated check-in setups in Dubai and the UAE. Compact yet powerful, it delivers ultra-fast MRZ and barcode capture, multi-light imaging (visible, IR, UV), and rich document compatibility in under a second.
- Ultra-fast capture
- Multispectral imaging
- Broad document compatibility
- Kiosk-ready design
The KR530(B) is made for places with a lot of people, like airports, hotels, border control kiosks, and government offices. It can read travel and identity documents from more than 200 countries. The device takes clear pictures and captures fine details in documents, such holograms and micro-text, thanks to its 5-megapixel sensor and 500 DPI resolution. It has OCR, 1D/2D barcode decoding, RFID or smart-card scanning (ISO/IEC 14443 & 7816), and automatic document type detection to make processes easier. The anti-glare, multispectral lighting (visible, IR, UV) makes sure that captures are always accurate, even when the lighting is bad or the surface is reflective. The KR530(B) is perfect for kiosks, e-gates, self-service check-in, and document verification systems in the UAE because it has full SDK support for Windows, Linux, and Android.
Illumination Sources: Visible light + IR (850 nm) + UV (365 nm)
Anti-glare: Eliminates reflections from holographic security films
Active Scan Area: 127 mm × 88 mm
Image Sensor: CMOS, 5 Megapixels (2592 × 1944)
Resolution: 500 DPI
Color Depth: 24-bit/pixel
Image Formats: JPEG, BMP, PNG
OCR Recognition: Supports ICAO 9303-compliant and non-standard documents (passports, ID cards, visas, driver’s licenses)
Barcode Support: 1D (Code 128, Code 39, EAN-13…) and 2D (PDF417, QR, DataMatrix™)
RFID / Smart Card: Read/write contactless ICs (ISO/IEC 14443-S Type A/B) and smart cards (ISO/IEC 7816)
e-Passport Support: Basic Access Control (BAC), active/passive authentication
Scanning Speed: Less than 1 second per document
Interface: USB 2.0 / USB 3.0, PC/SC compliant
Auto-Trigger / Auto-Classification: Yes — automatic document detection and type classification
Status Indicators: Four LEDs (Power, Ready, Error, Warning) + buzzer
Dimensions: approx. 169 × 193 × 104.3 mm
Net Weight: approx. 1.30 kg
Environmental: Operating Temp: –10 °C to 50 °C; Storage: –20 °C to 50 °C; Humidity: 20%–95% non-condensing
IP Rating: IP50
Warranty: 1 year (extendable)
KR530(B) – Ultimate High-Speed Identity Reader
It is designed for modern self-service identity workflows in airports, smart hotels, immigration desks and visitor management kiosks throughout the UAE. By combining ultra-fast data capture with multispectral imaging and broad document support, it reduces manual entry, enhances verification accuracy and delivers a seamless user experience.
With built-in OCR, barcode and RFID reading, and SDK support for multiple platforms, the KR530(B) ensures reliable integration, future-proof performance and hassle-free deployment backed by responsive local support in Dubai and the GCC.
