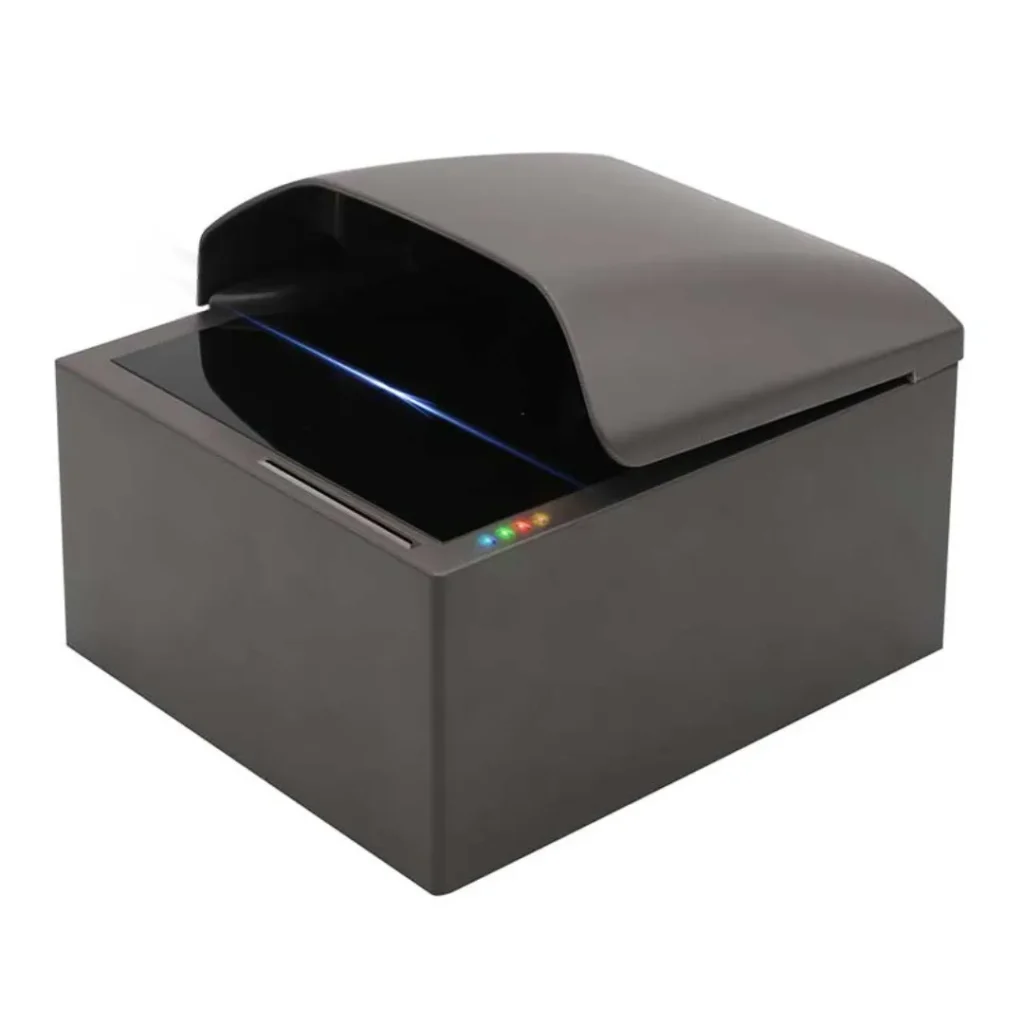

KR500(C) Kiosk Passport Scanner
It is a small, high-performance scanner for passports and ID cards. It was made to quickly check people’s identities in Dubai and all throughout the UAE. It scans quickly and accurately, has multi-light imaging and RFID capabilities, and is perfect for hotels, workplaces, and access control systems.
- Fast Capture (<1s)
- Multi-Light Imaging
- RFID & MRZ Reading
- Compact & Versatile
The KR500(C) can take high-quality photos from passports, ID cards, and travel papers using visible, infrared, and ultraviolet light. It has a 500 DPI, 5-megapixel CMOS sensor and can scan RFID tags to verify smart cards. It also uses OCR to get data. Automatic document detection and auto-classification make operations easier and cut down on mistakes made by people, which is why it’s a good choice for security desks, check-ins, and registration terminals.
Illumination Sources: Visible, IR (850 nm), UV (365 nm)
Anti‑Glare: Eliminates reflections from holographic films
Active Scan Area: 127 mm × 88 mm
Sensor: CMOS, 5 Megapixels (2592×1944)
Resolution: 500 DPI
Color Depth: 24‑bit / pixel
Image Formats: JPEG, BMP, PNG
OCR Recognition: ICAO 9303 standard passports & non‑standard ID cards
Barcode Support: 1D (Code 128, Code 39, EAN‑13…), 2D (PDF417, QR, DataMatrix™)
RFID / Smart‑Card: ISO/IEC 14443‑S (Type A/B), ISO/IEC 7816 smart cards
e‑Passport Support: BAC, Active/Passive Authentication
Scanning Speed: Less than 1 second
Interface: USB 2.0 / USB 3.0, PC/SC
Dimensions: 169 × 193 × 104.3 mm
Net Weight: ~1.30 kg
Warranty: 1 Year (extensible)
KR500(C) ID Card & Passport Scanner – Compact, Smart, Secure
The KR500(C) is great for registration desks, access points, and mobile verification setups in the UAE. It can scan complete pages, read RFID tags, and extract OCR data, all in a space-saving form. It has visible, infrared, and ultraviolet lighting that makes it easy to view document security features and cuts down on mistakes made by hand.
The KR500(C) is easy to connect via USB and works on all major platforms. It is made to be flexible and simple. With eTOP’s experienced help in Dubai and the GCC, it’s a safe choice for checking in at hotels, banks, hospitals, and government offices.
