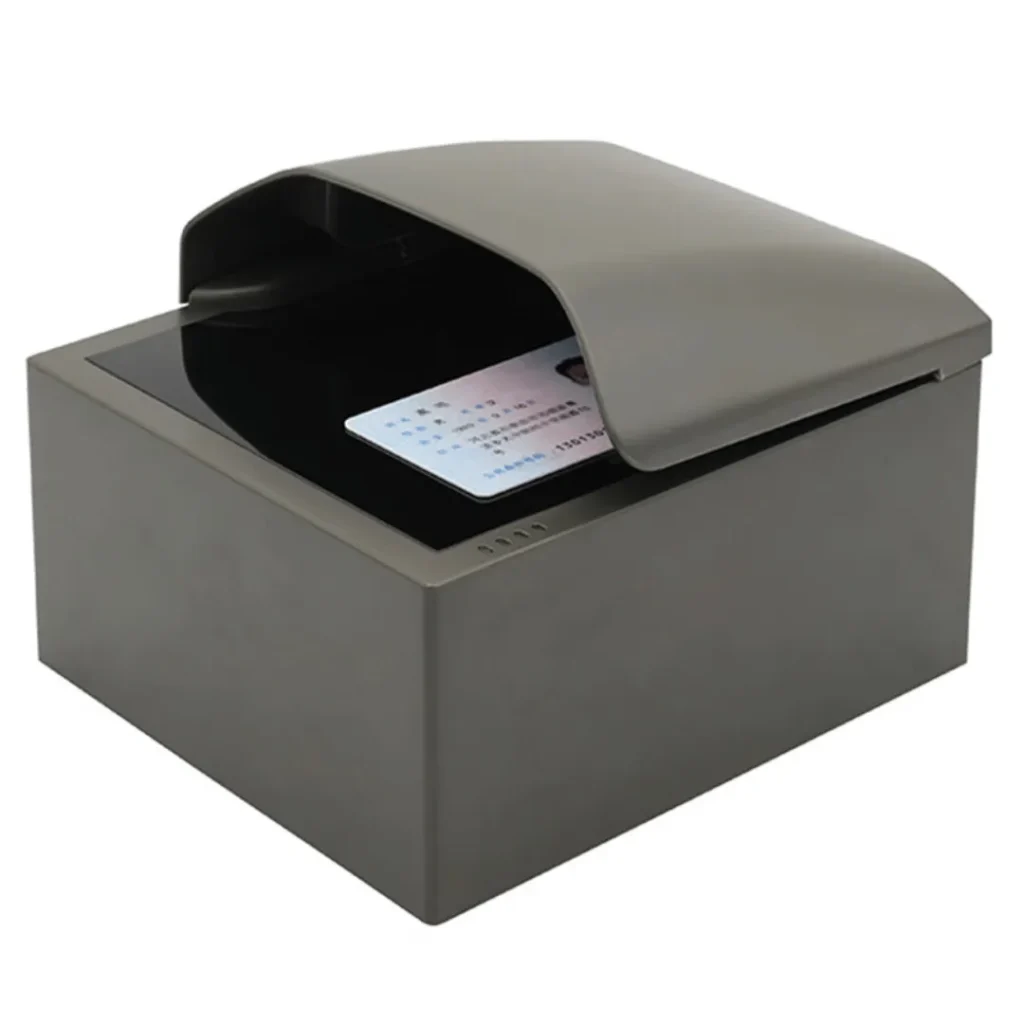

KR420 Kiosk Passport Scanner
It is a compact, high-performance document reader built for secure and efficient ID verification in Dubai and across the UAE. Designed for self-service kiosks, immigration counters, hotels, and government applications, it offers fast and accurate data capture for passports and ID cards.
- Sub-1-Second Capture
- Multi-Light Imaging
- RFID & MRZ Reading
- Kiosk-Optimized Design
The KR420 is designed for self-service and kiosk applications with a lot of traffic. It works with ICAO 9303-compliant passports, ID-1/ID-2/ID-3 formats, and papers from China and Asia that don’t follow any of these standards. It scans documents quickly and clearly, with no mistakes, in less than a second. It has visible and IR lighting, 500 DPI CMOS imaging, and automatic document detection. Its small, sturdy form makes it perfect for use in kiosks, immigration desks, hotel check-in stations, and government access points all around the UAE. It works with Windows and Linux and has an SDK that makes sure it integrates smoothly with other systems and works reliably.
Illumination Sources: Visible and IR (850 nm)
Anti-Glare: Eliminates reflections from holographic security films
Active Scan Area: 127 mm × 88 mm
Sensor: CMOS, 500 Megapixels (2592 × 1944)
Imaging: 24-bit color depth
Resolution: 500 DPI
Image Format: JPEG, BMP, PNG
Headshot Cropping: Automatically extracts document photo area
OCR Recognition: Supports ICAO 9303 and non-ICAO documents (ID cards, driver’s licenses, exit-entry permits, etc.)
Barcode Reading: 1D (Code 128, Code 39, EAN-13) and 2D (PDF417, QR, DataMatrix)
Scanning Speed: Less than 1 second
RFID: ISO/IEC 14443-S (Type A/B), supports e-passport BAC, active/passive authentication
Machine Readable Zone: ICAO 9303 Standard (ID-1, ID-2, ID-3)
Data Communication: USB 2.0 / USB 3.0 / PC/SC
Communication Speed: Up to 848 kbps
Auto-Trigger & Auto-Classification: Detects and recognizes document types automatically
Indicators: 4 LEDs (Power, Ready, Error, Warning) with customizable alerts
Sound: Buzzer feedback
SDK: Includes OCR SDK for Windows and Linux (VC, VB, C#, Java support)
Power: Input AC 100-240V (50/60Hz), Output DC 12V 2A
Environment: Humidity 20%-95% non-condensing; Temp -10°C to 50°C (operating)
Dimensions: 193.2 × 166 × 104.3 mm
Weight: 1.30 kg (net), 2.11 kg (gross)
Warranty: 1-Year standard, extendable
Kiosk Passport Scanner KR420: Quick, accurate, and safe way to check someone's identity
Its is a new type of identification verification tool that is made for self-service kiosks and automated terminals. It was made to satisfy the needs of UAE airports, hotels, immigration points, banks, and government offices. It can scan documents, read MRZ codes, and read RFID chips in just a few seconds.
Its excellent CMOS imaging sensor and dual-light illumination (visible and IR) make guarantee that photos of passports, ID cards, and other ICAO 9303-compliant papers are clear and high-quality, even if they have holographic security elements. The KR420 has automatic document detection, which cuts down on the need for manual handling. This speeds things up, makes them cleaner, and makes them more user-friendly in self-service settings.
