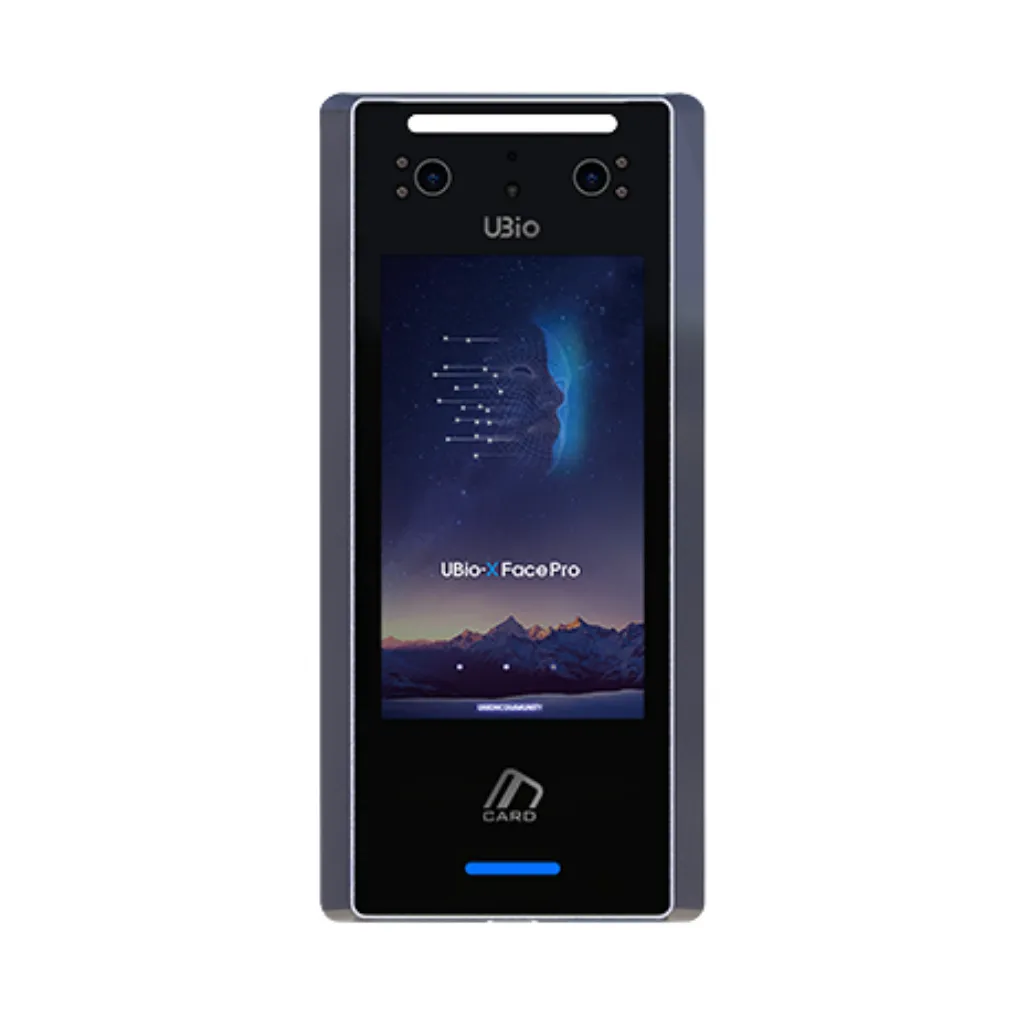

UBio-X Face Pro
Face Recognition Time Attendance & Access Control Terminal
The UBio-X Face Pro is a slim face recognition terminal from UNION Biometrics (Union Community, maker of the Nitgen and Virdi ranges) for access control and time attendance. It verifies a face in under a second at 0.5–2 m, stores 30,000 faces (50,000 optional) and also accepts cards, mobile keys and, with add-on modules, fingerprints and QR codes. Supplied and supported across the UAE by eTOP.
- Face recognition in under 1 second at 0.5–2 m
- Liveness detection against spoofing
- Cards, NFC/BLE mobile keys, optional fingerprint & QR
- Optional contactless thermal sensor
Experience, Beyond Security
The UBio-X Face Pro (also sold as the Nitgen or Virdi UBio-X Face Pro) is part of UNION’s UBio-Core platform, so new features arrive through firmware updates instead of a hardware replacement. A 1.8 GHz quad-core CPU with a 2.3 TOPS NPU, 4 GB RAM and 16 GB flash runs deep-learning face matching in under one second at 0.5–2 m, with liveness detection to reject spoofing attempts.
One terminal supports six ways to authenticate: face, RF card, NFC/BLE mobile key and password as standard, plus fingerprint or QR code through the optional Xscan-FP5 and Xscan-FQ5 modules. It stores 30,000 faces (50,000 optional), 500,000 cards and 10 million event logs, and connects over Gigabit Ethernet or 2.4 GHz Wi-Fi.
It is rated IP55 as standard, with IP65 available as an option, so choose the IP65 version or a protective enclosure for fully exposed outdoor gates. Faces are recognised at 0.5–2 m, which means users face the screen briefly rather than walking past from a distance.
- CPU & NPU: 1.8 GHz quad-core CPU, 2.3 TOPS NPU
- Memory: 4 GB LPDDR4 RAM, 16 GB eMMC flash
- Display: 5″ TFT IPS touch LCD, 720 × 1280
- Authentication: Face, RF card, NFC/BLE mobile key, password; fingerprint and QR with optional modules
- Face recognition: 0.5–2 m, under 1 second, liveness detection
- Face capacity: 30,000 (50,000 optional)
- Fingerprint capacity: 50,000 (1:N) / 500,000 (1:1) with Xscan module
- Card capacity: 500,000
- Log capacity: 10,000,000 events / 20,000 pictures
- Card support: 125 kHz EM; 13.56 MHz MIFARE, FeliCa, ISO 14443 A/B, ISO 15693, DESFire EV1/EV2/EV3; HID iClass optional
- Network: Gigabit Ethernet (10/100/1000M), Wi-Fi 802.11b/g/n 2.4 GHz
- Interfaces: RS-485 ×1, RS-232 ×2, Wiegand in/out, 2 relays, USB 2.0
- Power: DC 15–24 V, max 1.1 A at 15 V
- Protection: IP55 (IP65 optional), IK06, tamper detection
- Operating environment: −20 to 60 °C, 0–90% RH non-condensing
- Dimensions & weight: 92 × 200 × 21 mm, 336 g
- Certifications: KC, CE, FCC
- Security & server: AES-256 / Azure Key Vault encryption; on-premise or cloud server
GET A FREE QUOTE
Xscan-FP5 Module: High-Performance Biometric Fingerprint Sensor
- Fingerprint as a second factor: adds fingerprint verification alongside face recognition.
- Large capacity: matches up to 50,000 users in 1:N fingerprint mode.
- Live Finger Detection: rejects fake fingerprints before a match is accepted.
- Multi-factor option: ideal where sites require face-and-finger validation.
Xscan-FQ5 Module: Multi-Modal Fingerprint & QR Code Sensor
- Fingerprint plus QR code: adds fingerprint and QR authentication to the terminal.
- QR code scanning: reads 1D and 2D codes for visitor passes and mobile credentials.
- Live Finger Detection: rejects fake fingerprints before a match is accepted.
- Six ways to enter: face, fingerprint, card, mobile key, QR code and password.
Thermal-i/i2 Module: Contactless Temperature Sensor
- Advanced Temperature Screening: Seamlessly connects to measure user temperature instantly.
- Automated Health Compliance: Restricts access automatically if high temperature is detected.
- Touchless Visual Alerts: Displays real-time thermal status directly on the 5″ IPS screen.
- Target Environments: Ideal for healthcare facilities, schools, and high-traffic workplaces.
Key Features
Fast Face Recognition Deep-learning matching on a dedicated 2.3 TOPS NPU verifies users in under 1 second at 0.5–2 m, keeping entrances moving at shift change.
Liveness Detection Built-in anti-spoofing checks that a real person is in front of the terminal, not a photo or screen.
Six Authentication Methods Face, RF card, NFC/BLE mobile key and password as standard, with fingerprint (Xscan-FP5) or fingerprint plus QR code (Xscan-FQ5) as add-on modules for multi-factor access.
Optional Thermal Sensor Add the contactless Thermal-i/i2 module for temperature screening at the point of entry.
Flexible Connectivity Gigabit Ethernet, 2.4 GHz Wi-Fi, RS-485, two RS-232 ports, Wiegand in/out, two relays and USB 2.0 connect it to locks, controllers and your attendance software.
Built for Daily Use IP55 as standard (IP65 optional), IK06 impact protection, tamper detection and a −20 to 60 °C operating range in a slim 92 × 200 × 21 mm body.
Who Uses the UBio-X Face Pro in the Middle East?
The UBio-X Face Pro suits organisations across the UAE and the wider Middle East:
Offices & Corporate Buildings — Manage employee attendance and visitor access across single or multi-floor offices without physical cards or PINs.
Factories & Warehouses — Handle high-volume shift workers at entry gates and restricted zones with fast, touchless verification even in dusty or humid conditions.
Schools & Universities — Track student and staff attendance automatically while maintaining a safe, contactless environment.
Government & Military Facilities — Enforce strict access control with multi-factor authentication including face, fingerprint, and card.
Hospitals & Healthcare — Maintain hygiene compliance with touchless check-in and optional thermal screening for staff and visitor entry.
Hotels & Hospitality — Streamline staff attendance across shifts and departments while maintaining a professional environment for guests.
Why Buy the UBio-X Face Pro from Us?
- Trusted Nitgen and Virdi dealer serving the UAE and Middle East
- Full installation, configuration, and after-sales support
- Integration support with leading HR and payroll software
- Fast delivery across UAE, Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain
The UBio-X Face Pro is manufactured by Union Community, the parent company that owns both the Nitgen and Virdi biometric brands. So when people search for the “Nitgen UBio-X Face Pro” or “Virdi UBio-X Face Pro,” they are referring to the exact same device — the UBio-X Face Pro by Union Community.
The standard configuration stores up to 30,000 face templates. An optional upgrade extends this to 50,000 faces — suitable for large factories, campuses, or government facilities.
The UBio-X Face Pro is the newer UBio-Core model, with a 1.8 GHz CPU, a dedicated NPU, 4 GB RAM and optional fingerprint or QR modules. Choose it for the firmware-upgradeable platform, wider card support and QR access; the UBio-X Pro is the earlier face and fingerprint terminal.
Partly. The standard model is rated IP55 with IK06 impact protection, which suits covered entrances. For fully exposed outdoor gates, choose the optional IP65 version or install it in a protective enclosure.
Pricing depends on the configuration, optional modules, and quantity required. Contact etopme.ae for a free, customized quote with delivery to anywhere in the Middle East.
Yes. Face recognition is fully contactless and verifies a person in under 1 second at 0.5 to 2 metres. Users simply face the screen; cards and NFC/BLE mobile keys are also read without contact.
