UBio Tablet5 Portable Fingerprint Reader

Nitgen UBio Tablet5 Portable Fingerprint Reader Supplier/Dealer In Dubai UAE & Middle East.

UBio Tablet5 Portable Fingerprint Reader Supplier/Dealer In Dubai UAE & Middle East

Live Fingerprint Detection/Reader Distributor in Dubai, UAE

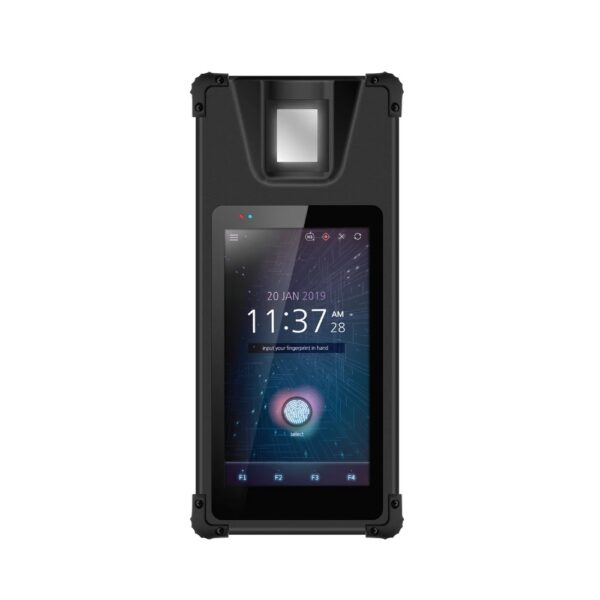

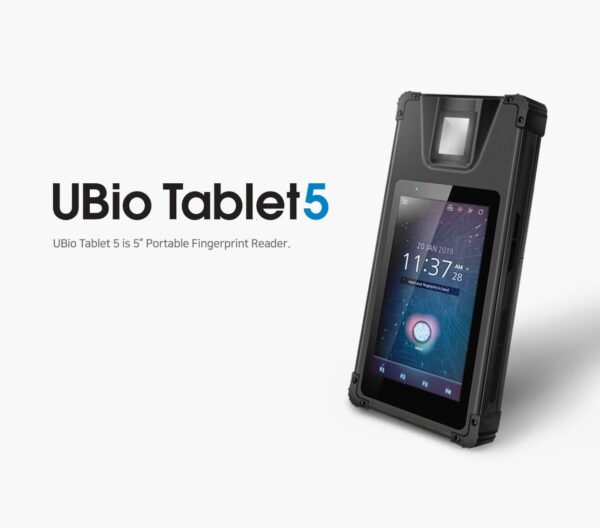

UBio Tablet5 is a Portable Fingerprint Reader

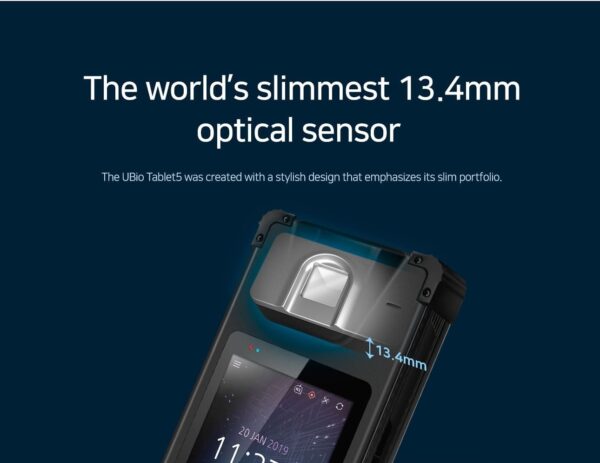

The UBio Tablet5 was created with a Stylish design that emphasizes its slim Portfolio. The UBio Tablet – designation UBio Tab5 – is a 5-inch tablet with Nitgen NScan-FM FBI PIV and FAP20 certified fingerprint sensor embedded within the casing of the tablet body. The NScan-FM is the slimmest fingerprint sensor with a height of only 13.4 mm. The tablet body is ruggedized and will be supplied with a Gorilla Glass screen protector and rubberized tablet casing to protect the tablet from accidental damage.

The NScan-FM fingerprint module features all the functionality found in all other Nitgen biometric terminals – Live & Fake Fingerprint Detection (LFD) and multispectral response imaging as standard, as well as the capability to function as a PIV iAFIS device with a sensing area of 16 mm x 21 mm.

FBI PIV and FAP20 Certifications
UBio Tablet5 is a FBI PIV and FBI Mobile ID Certified FAP20 Optical Sensor.

Live Fingerprint Detection
Live Fingerprint Detection technology that distinguies fake fingerprints made from various materials including clay, rubber, silicon, Glue, Paper, film and more.

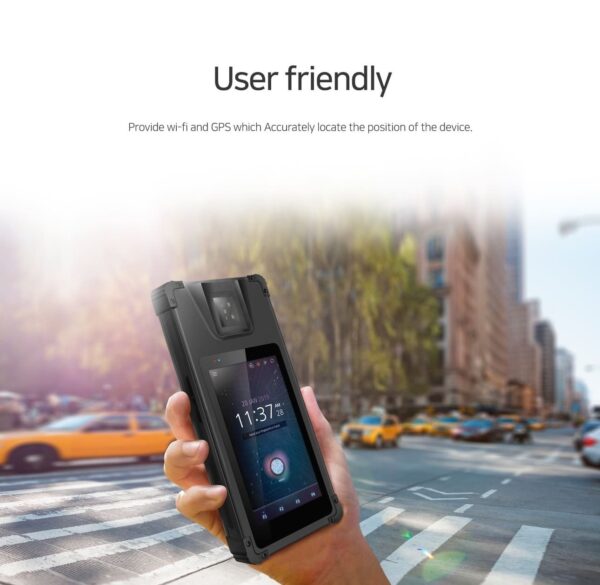

User Friendly
Provide wi-fi and GPS which accurately located the position of the Device.

Portability
Enables Efficient Business with easy portability.

Download Brochure

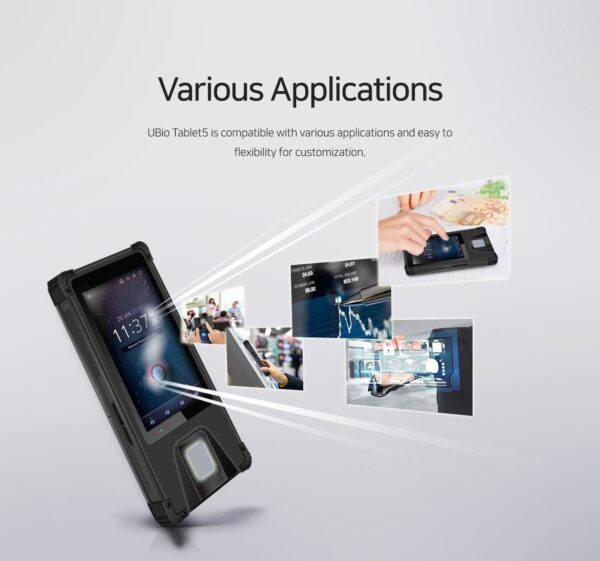

Various Applications
UBio Tablet6 is compatible with varius applications and easy to flexibility for customization.

The tablet itself features the native Android 7.0 operating system (no GMS support), a 1.3 GHz 64-bit quad-core processor, a 5-inch capacitive multi-touch IPS LCD (1280 x 720 resolution), 2 GB RAM, 16 GB ROM (expandable via microSD to 64 GB), a 5 MP auto focus rear camera with flash and a 2 MP auto focus front camera, an ICASA-approved 2G/3G/WCDA/4G GSM dual micro SIM module, USB 2.0 high-speed port, Wi-Fi, Bluetooth, NFC 13.56 MHz card reading capability and a removable 6000 mAH Li-Ion battery.

Sensor Specification

Finger Scanner	FAP20 Nsacn-FM Fingerprint Sensor
Fingerprint Type	Optical
Resolution	500dpi
Gray Scale	256 gray
Platen Size (W x L)	16.6 x 21.6 mm
Sensing Area (W x L)	16 x 21 mm
Auto Sensing	O
Speed	10 frames Per second(fps)
Interface	USB 2.0(High Speed)
Operating Temperature	-20 ~ 60°C
Operating Humidity	10 ~ 90%, non-condensing
Certifications	KC,CE,FCC,ROHS,IP65(Sensor Surface),FBI PIV+FAP20
Image Format	ISO 19794-4 WSQ, RAW,BMP
Template Type	VIRDI, ISO 19794-2, ANSI 378
LFD	O

Tablet Specification

Operating System	Android 7.0
CPU	MTK6737 ARM-A53 1.1-1.5GHz Quad core 64-bit
Memory	2GB Ram + 16GB ROM (Micro SD Slot expandable up to 32GB) 64MByte DDR2, 4MByte Serial Flash
Display	5 Inchs IPS LCD (1280*720) / G+G Capacitive Multi-Touch Panel
Camera	5MP with Auth Focus
Modem	2G, 3G WCDMA 2100 (Optional: 850/1900), 4G band in B1/B3/B7
Interface	RS232(TTL), USB2.0, NFC 13.56MHz
Dimension (W x H x D)	88 x 197 x 27 mm
Weight	400g
Battery	6000mAh
