Ensure high-security access management with the ZKTeco InBio Pro Series. This high-end, project-oriented controller offers embedded fingerprint verification and advanced access control functions for offices and commercial facilities across Dubai and the UAE.

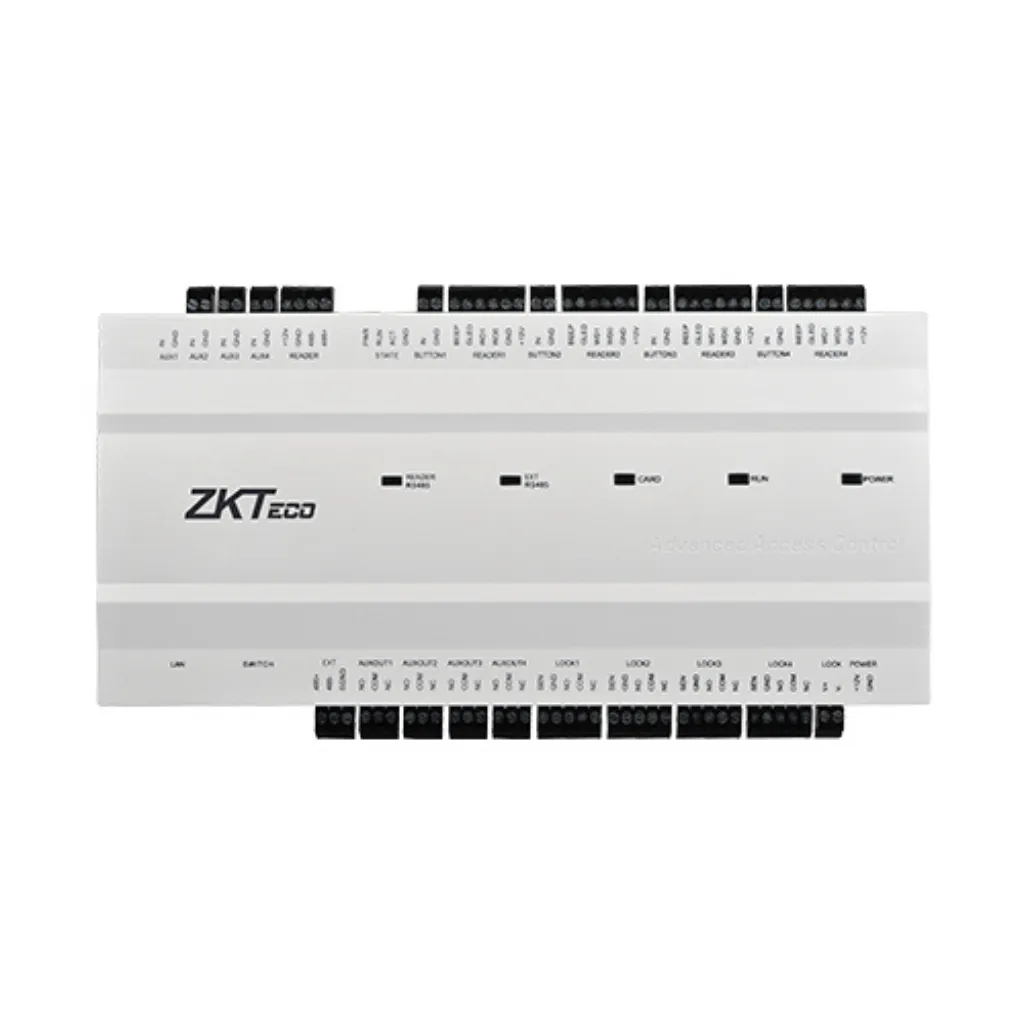

ZKTeco inBio Pro Series
- Truly Internal Biometric Identification
- Advanced Access Control Built-In
- Fast Authentication
- More than Door Control
The InBio Pro Series is designed for seamless integration with the ZKBioSecurity web-based platform, delivering a full-featured biometric security solution. Supporting TCP/IP communication over LAN or WAN, it enables centralized management and scalable deployment. When paired with the FR1300 RS485 reader, the system authenticates users via multiple verification modes—including fingerprint, card, and password—ensuring a higher level of security for any organization.
Models: InBio-160 Pro (1 Door), InBio-260 Pro (2 Doors), InBio-460 Pro (4 Doors)
Reader Support: 26-bit Wiegand & RS485 FR Series readers
Number of Readers: 4 / 8 / 12 (depending on model)
Inputs: 3 / 6 / 12 (Exit buttons, Door Status, AUX)
Outputs: 2 / 4 / 8 (Form C Relay for Lock & Aux)
Card Holder Capacity: 60,000 users
Fingerprint Capacity: 20,000 templates
Event/Log Capacity: 100,000 records
Communication: TCP/IP
CPU: 32-bit 1.2GHz
RAM: 128MB | Flash Memory: 256MB
Power Supply: 9.6V–14.4V DC
Operating Temperature: 0–45°C | Humidity: 20–80% RH
Package Dimensions: 350 × 90 × 300 mm
Package Weight: 3.6–3.7 kg
