ZKTeco EC16 Access Control System in Dubai UAE

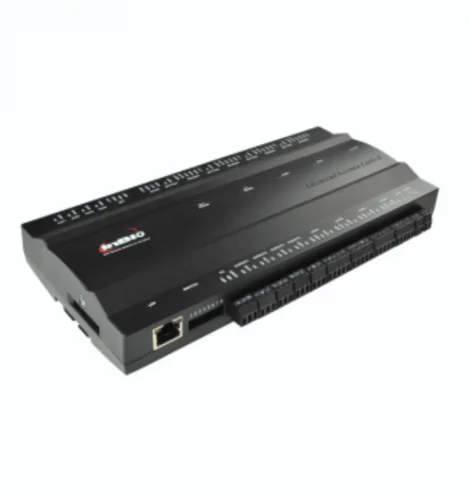

ZKTeco InBio Pro Plus Series

Advanced Biometric Access Control in Dubai & UAE – Secure, scalable, and high-performance access control with InBio Pro Plus Series.

The ZKTeco InBio Pro Plus Series is a project-oriented, high-end access control system designed for modern workplaces. Featuring embedded facial and fingerprint authentication, TCP/IP connectivity, and integration capabilities, it provides fast, reliable, and tamper-proof access management for small to large enterprises across Dubai and the UAE.

The ZKTeco InBio Pro Plus Series delivers high-end biometric access control with fingerprint, facial, card, and QR code authentication. Ideal for offices, factories, and commercial buildings across Dubai and the UAE, these controllers support multiple access points, high user capacity, and fast, reliable authentication. With TCP/IP and RS-485 connectivity, AES/TLS encryption, and seamless integration with ZKBio CVSecurity software, the InBio Pro Plus Series ensures secure, scalable, and tamper-proof access management for modern enterprises.

Models:

  • InBio160 Pro Plus (1 Access Point)

  • InBio260 Pro Plus (2 Access Points)

  • InBio460 Pro Plus (4 Access Points)

Hardware & OS:

  • CPU: Single Core @ 1.0GHz

  • RAM: 128MB; ROM: 256MB

  • OS: Linux

User & Biometric Capacity:

  • Users: 100,000

  • Fingerprint Templates: 20,000

  • Face Templates: 3,000

  • QR Code Capacity: 100,000

  • Transaction Capacity: 500,000

Authentication Methods:

  • Fingerprint / Face / Card / QR Code / Password

Reader Capacity:

  • InBio160 Pro Plus: 2 RS-485 / 2 Wiegand

  • InBio260 Pro Plus: 4 RS-485 / 4 Wiegand

  • InBio460 Pro Plus: 8 RS-485 / 4 Wiegand

Inputs & Outputs:

  • Exit Buttons: 1/2/4

  • Door Status: 1/2/4

  • AUX Inputs/Outputs: Configurable; expandable via 8 EX0808 boards

Biometric Performance:

  • Fingerprint Auth Speed: <0.3s, FAR ≤0.0001%, FRR ≤0.01%

  • Face Auth Speed: <0.3s, FAR ≤0.01%, FRR ≤0.02%

Communication & Connectivity:

  • TCP/IP, RS-485 (OSDP optional), Wiegand, USB

  • Integration with ZKBio CVSecurity

Physical & Power:

  • Operating Temp: 0–45°C; Humidity: 20–80% RH

  • Dimensions: 185×106×36 mm (160/260), 226×106×36 mm (460)

  • Power Supply: 9.6–14.4V DC

  • Optional Metal Enclosure / DIN Rail / Wall Mount

Certifications:

  • ISO9001, ISO14001, CE, FCC, RoHS

ETOP

Authorized Dealer

We are an trusted supplier of ZKTeco biometric devices. Our sales experts can help you choose the perfect model for your business or organization. Contact us at +971 52 899 9169 or email: sales@etopme.ae for more information.
