Secure and manage access efficiently with the ZKTeco C3 Pro Plus series in Dubai and across the UAE. This IP-based controller offers RFID and dynamic QR code authentication, providing high-security access solutions for small to medium-sized enterprises.

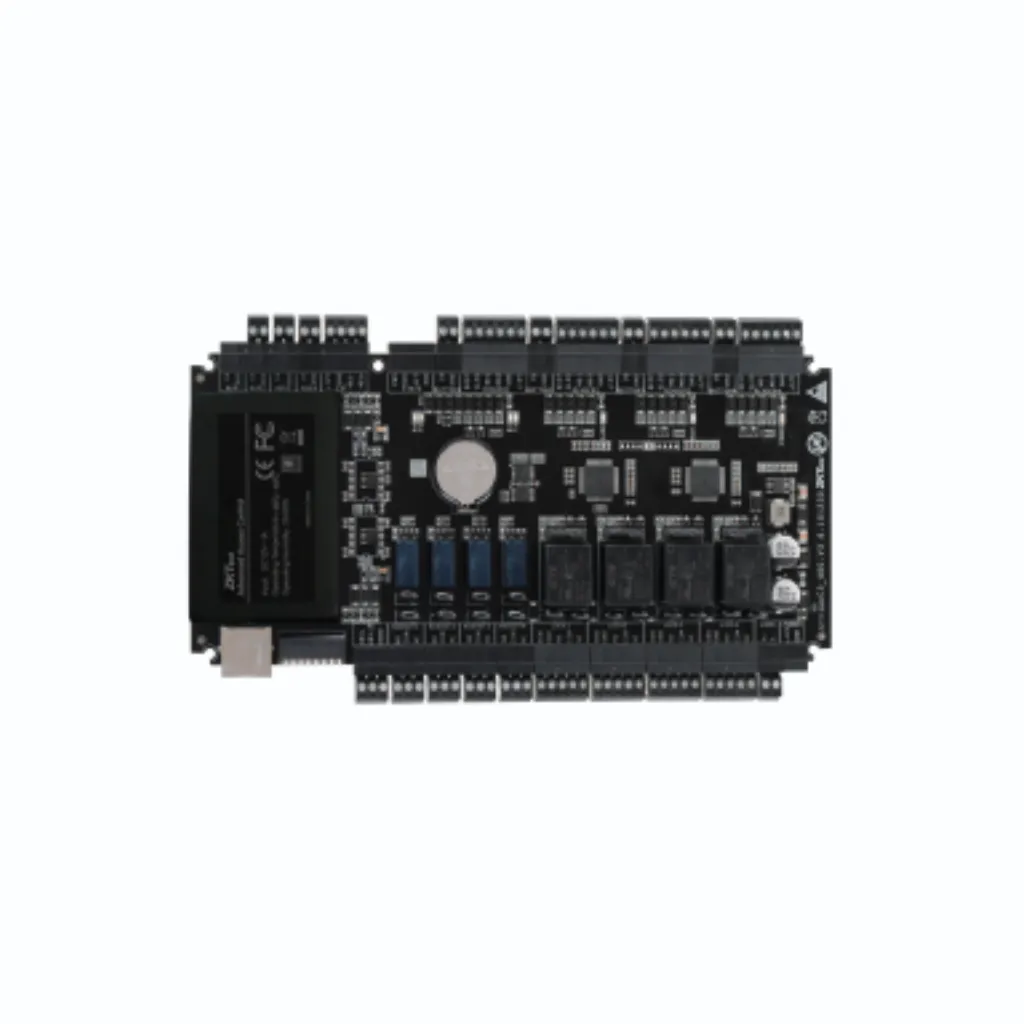

ZKTeco C3 Pro Plus Series
- Support 1-Door/2-Doors/4-Doors
- Up to 100,000 multi-tech card users
- 100,000 dynamic QR code transactions
- Supports EX0808 I/O expansion board
The ZKTeco C3 Pro Plus series includes three models: C3-100 Pro Plus, C3-200 Pro Plus, and C3-400 Pro Plus, supporting 1 to 4 access points. Compatible with RS-485 devices and Wiegand readers (formats W26/W34/W66), these controllers seamlessly integrate with third-party access systems. With AES 256-bit and 128-bit encryption, HTTPS/TLS1.2 communication, and support for ZKTeco QR code readers (QR50, QR500, QR600), the C3 Pro Plus ensures secure and tamper-proof access control. It handles up to 100,000 card users, 100,000 dynamic QR codes, and 500,000 transactions, making it ideal for offices, commercial buildings, and industrial facilities across Dubai, Abu Dhabi, Sharjah, and the wider UAE.
Models: C3-100 Pro Plus, C3-200 Pro Plus, C3-400 Pro Plus
OS: Linux
CPU / RAM / ROM: Single Core @1.0GHz / 128MB RAM / 256MB ROM
Authentication: Card / Password / QR Code
Access Points: 1 / 2 / 4 (C3-100 / C3-200 / C3-400 Pro Plus)
Reader Capacity: 2 / 4 / 8 RS-485 readers; Wiegand (2 / 4 / 4)
I/O Expansion: 8 pcs EX0808 (RS-485 connection)
User Capacity: 100,000
Card Capacity: 100,000
QR Code Capacity: 100,000 (Static / Dynamic)
Transaction Capacity: 500,000
Inputs / Outputs: Configurable (see model specs)
Card Length Supported: Up to 66 bits
Communication: TCP/IP, RS-485, USB Type A
Operating Temp / Humidity: 0°C–45°C / 20–80% RH
Dimensions (L×W×H): C3-100 / 200: 175×99×19.3 mm; C3-400: 215.88×99.14×19.3 mm
Gross Weight: 0.263–0.357 Kg
Net Weight: 0.158–0.252 Kg
Supported Software: ZKBio CVAccess
Installation: Wall-mount (metal enclosure optional)
Certifications: ISO14001, ISO9001, CE, FCC, RoHS
ETOP
Authorized Dealer
We are an trusted supplier of ZKTeco biometric devices. Our sales experts can help you choose the perfect model for your business or organization. Contact us at +971 52 899 9169 or email: sales@etopme.ae for more information.
