IT-UB500

Walk Through Metal Detector UAE

The IT-UB500 Walk Through Metal Detector is a high-precision security screening solution designed for airports, government buildings, schools, malls, industrial facilities, and event venues across the UAE. Built with multi-zone detection technology and adjustable sensitivity levels, this walk through metal detector ensures accurate threat detection while maintaining smooth pedestrian flow.

  • 6 Zone & 18 Zone Detection Options for precise object localization

  • 100 Adjustable Sensitivity Levels per Zone (0–99) for controlled screening

  • Digital LED Display with Pass & Alarm Counter

  • Weather-Resistant Design with IP Rating & Safe Human Operation

Download Datasheet

The IT-UB500 Walk Through Metal Detector is engineered to provide efficient and accurate screening in medium to high-traffic environments. Featuring bilateral transmission and reception technology, it enhances detection accuracy while minimizing false alarms.

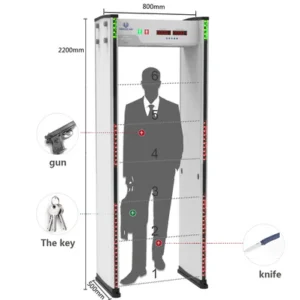

With 18 detection zones, security personnel can quickly identify the exact location of metallic objects on the body. Adjustable frequency (5.9K–8.6KHz) ensures stable performance even in environments with signal interference. The system supports both one-way and two-way infrared beam modes and can detect small metallic objects such as coins, ensuring reliable threat detection.

Designed for indoor security applications, the IT-UB500 is ideal for:

  • Airports & transportation hubs

  • Government & defense facilities

  • Schools & universities

  • Corporate offices

  • Shopping malls & public venues

  • Industrial & warehouse facilities

The device operates safely for the human body and supports multi-language operation, making it suitable for diverse environments across the UAE. Optional add-ons such as wheels and CCTV integration further enhance operational flexibility.

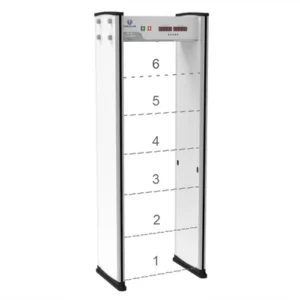

  • Detection Zones: 6 Zone / 18 Zone

  • Detection Mode: Bilateral transmission & reception

  • Sensitivity Levels: 0–99 per zone (100 adjustable levels)

  • Frequency Range: 5.9KHz – 8.6KHz adjustable

  • Smallest Detectable Object: Coin-sized metal

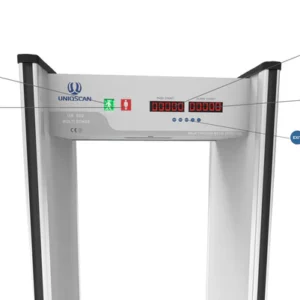

  • Visual Display: 5-digit LED display

  • Pass Count & Alarm Count display

  • Alarm Indicators: Panel light & buzzer

  • Infrared Passing Speed: Up to 60 persons/min

  • Infrared Beam Mode: One-way / Two-way / Disabled

  • Environmental Interference Detection: Yes

  • Multi-Unit Synchronization: Manual

  • Access Control: Button control

  • Remote Control: Not supported

  • Power Supply: AC110V/220V – 50/60Hz

  • Working Current: 1A

  • Power Consumption: <12W

  • Protection Class: IP53

  • Operating Temperature: -20°C to +45°C

  • Working Humidity: 0–95% (No condensation)

  • Construction Material: MDF, gray finish

  • Installation Method: Vertical installation

  • Cable Connector: DB25

  • Warranty: 12 months (limited)

  • Technical Support: Available
