The Wacom DTH-2452 is the multi-touch counterpart to the DTK-2451: a 24″ Full HD pen display that adds finger-touch gesture support in addition to pen input, intended for professional annotation, collaboration and document workflows.

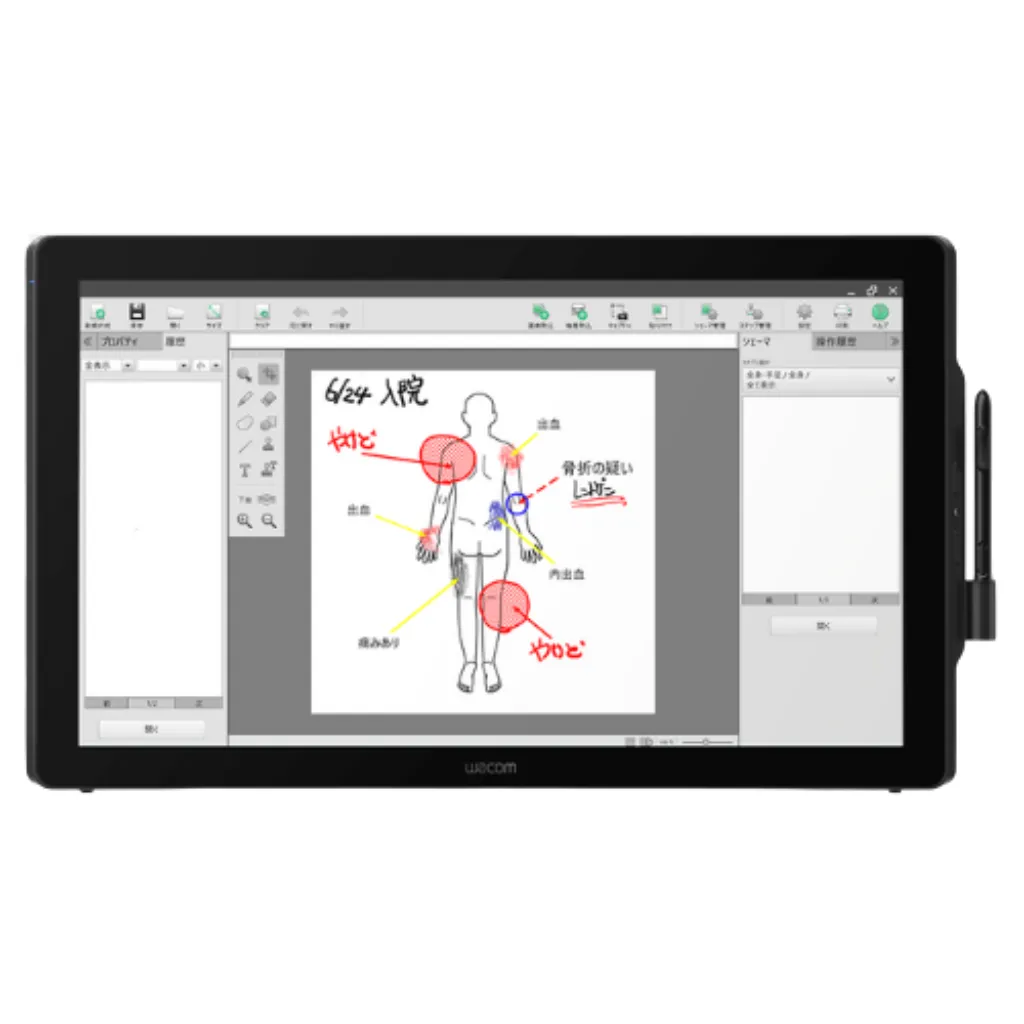

Wacom DTH-2452 Signature Display
- Biometrically accurate signatures with 1024 levels of pressure sensitivity
- Hardened anti-glare glass for a natural, paper-like signing feel
- Advanced AES256 / RSA2048 encryption for secure transactions
- Flexible connectivity with support for virtual desktop environments
The DTH-2452 combines the large surface of a 24″ pen display with touch-enabled interaction, making it useful for collaborative annotation, interactive presentations, signing sessions and education. Users can use pen and finger interchangeably to navigate, annotate and sign. As a result, it can serve as both a signing device and an interactive display. Organisations that anticipate mixed-use (presentation + signature) will find it versatile.
Screen Size: 23.8″ diagonal
Active Area: 527 × 296 mm (approx. 20.7 × 11.7 in)
Resolution: 1920 × 1080 (Full HD)
Aspect Ratio: 16:9
Display Type: LCD (VA panel) with tempered anti-glare etched glass
Colors: 16.7 million (16.7 M)
Brightness: 210 cd/m² (typical)
Contrast Ratio: 1000:1 (typical)
Viewing Angle: 178° horizontal / 178° vertical
Response Time: 16 ms (typical)
Pen Technology: Electromagnetic Resonance (EMR), cordless, battery-free
Pen Pressure Levels: 2048
Coordinate Resolution: 0.01 mm / point (2540 lpi)
Pen Accuracy: ±0.5 mm (center)
Pen Report Rate: 187 points per second
Multi-touch: Yes (touch input + pen + gesture support)
Programmable Buttons (ExpressKeys): 4
Connectivity / Interfaces: USB 2.0 + DVI-I (video in/out)
Video I/O: DVI-I input & output (analog or digital)
Stand: Adjustable stand with tilt 11°–73°
Mounting: VESA mount compatible
Encryption / Security: AES-256 / RSA-2048 encryption, Kensington security slot
Power Supply: 100–240 V AC, 50/60 Hz
Power Consumption: ≤ 40 W (normal), lower in power-save mode
Dimensions (excluding stand): 601 × 356 × 46 mm (approx. 23.7 × 14.0 × 1.8 in)
Weight (without stand): ~7.2 kg (15.9 lbs)
Supported Operating Systems: Windows 7 / 8.1 / 10 (32-bit & 64-bit), macOS 10.11 or later
Included in Package: Display unit, adjustable stand, battery-free pen with eraser, pen holder & tether, DVI-D cable, DVI-I → VGA adapter, USB cable, AC power adapter and power cable
GET A FREE QUOTE
The DTH-2452 is particularly valuable in settings where both signing and interactive touch presentation take place — for example, in branch banking, corporate meeting rooms, educational setups or interactive kiosks. When selecting, confirm your workstation supports DVI-I and consider desk layout for touch interaction (ensuring comfortable reach and view). The large screen means the device will dominate a workspace, so planning for power, cable routing and mounting/stand positioning is important.
