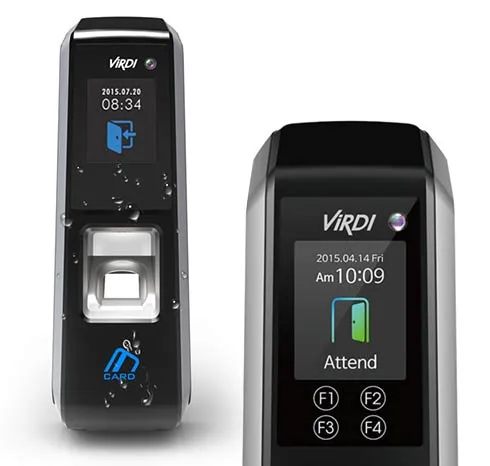

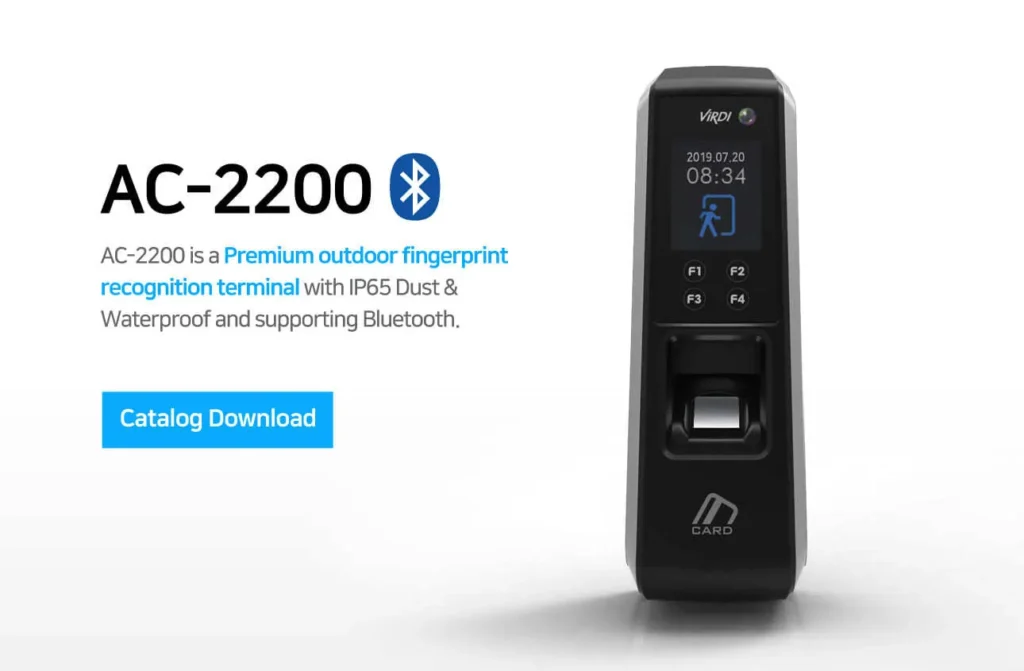

ViRDI AC-2200 Premium outdoor Fingerprint Recognition Terminal
The ViRDI AC-5000 IK Fingerprint Terminal is a IP65 Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key, Live Fingerprint Detection Embedded, IP65 Dust/Waterproof Protection, Available in two variants ViRDI AC2200 RF (H)and ViRDI AC2200 SC (H)
- IP65 Dust/Waterproof Protection
- UNIS B plus, V-Card App BLE Bluetooth Support (iOS, Android OS)
- Live Fingerprint Detection Embedded
- Fingerprint & EM 125Khz Card (or Mifare 13.56Mhz Card)
- Embedded VGA Camera (640 x 480 pixel)
- TCP/IP Server Communication
- AC2200(H) User Capacity: 5,000 / Finger Capacity: 10,000
Tags: Fingerprint Sensors
ViRDI AC-2200 is an outside-in type of biometric access control terminal designed for businesses. With the most advanced security and maximum convenience for users, AC-2200 offers superior reliability. AC-2200 terminal supports various types of biometric and RFID-based access methods, and comes equipped with a high quality camera of HD images during access events which are recorded and saved as image logs. Also, AC-2200 terminal supports mobile access methods using users’ Bluetooth enabled smartphones.
| Specification | Details |
| Model | ViRDI AC-2200 |
| Authentication Methods | Fingerprint, Card, Bluetooth Mobile Credential |
| Fingerprint Sensor | Optical Sensor |
| Fingerprint Resolution | 500 DPI |
| Live Finger Detection | Yes |
| Camera | Built-in HD Digital Camera |
| Display | 1.77-inch Color LCD |
| User Capacity | 10,000 Users |
| Fingerprint Capacity | 20,000 Templates |
| Event Log Capacity | 51,000 Logs |
| Card Type (RF Model) | 125KHz EM RFID |
| Card Type (SC Model) | 13.56MHz Smart Card / MIFARE |
| Bluetooth Mobile Access | Supported |
| Dust & Water Protection | IP65 Rated |
| Communication | TCP/IP, RS-485 (OSDP), Wiegand IN/OUT, USB |
| Wiegand Interface | Supported |
| OSDP Support | Supported |
| Operating Temperature | -20°C to +60°C |
| Power Supply | DC 12V |
| Installation Type | Indoor / Outdoor |
| Image Log Storage | Supported |
| Third-Party Integration | Supported |
| Applications | Access Control, Time Attendance, Building Security |
GET A FREE QUOTE
Advanced Digital Camera
Equipped with a high definition camera to provide for storing image logs as soon authenticate.
IP65 Dust & Waterproof
- Ingress protected enclosure,
keeping out dust moisture ensures faultless operation
even under unfavorable conditions. - Perfect for outdoor applications
High Definition Images
The high definition images captured by the AC-2200 access control terminal automatically log images of users during every access event. These image logs can serve as evidence should an investigation into unauthorized access be required. In addition, the AC-2200 allows for Bluetooth enabled mobile credentials. This means that users can now unlock doors to facilities and buildings using only their smartphones.
ViRDI AC-2200 is designed for storing 10,000 users with a total of 20,000 saved finger print templates. That makes it suitable for a large office spaces as well as smaller warehouses, and industrial locations, schools and hospitals. Additional applications include government, residential and commercial buildings and locations. ViRDI AC-2200 supports TCP/IP, RS-485 (OSDP), Wiegand and USB communications. As a result, the terminal can be used as a part of a brand new access control system as well as to add new functions to an existing system.

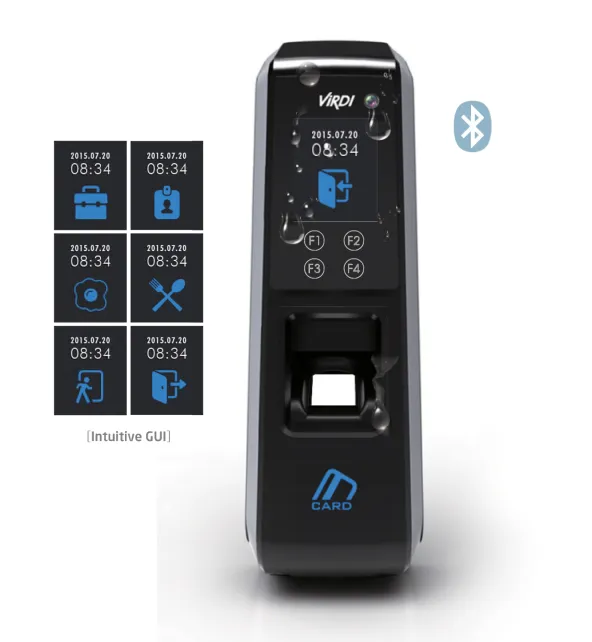

ViRDI AC2200RF (H) - RFID Fingerprint Access Control Terminal
AC2200RF (H) RFID Fingerprint Access Control Terminal for Outdoor Use: In addition to finger print recognition, the AC2200RF (H) RFID Fingerprint Access Control Terminal includes 125KHz RFID card reader to read all types of existing RFID cards. Outdoor weather resistant weatherproof housing with IP65 rating. The terminal also supports Bluetooth mobile credential, takes high definition images from built-in camera and has Live Finger Detection feature by ViRDI. This model can be used in offices, warehouses, factories, residential communities and any other commercial applications that require fast, secure access control with biometric recognition.
ViRDI AC2200SC (H) – Smart Card Fingerprint Access Control Terminal
AC2200SC (H) – Smart Card Fingerprint Access Control Terminal. This is a high end access control terminal that reads in both of your fingers and smart cards of 13.56MHz type (MIFARE, etc..). Also it read out Bluetooth mobile credentials and stores and plays back images from a high definition camera. Durable and high reliability terminal that is IP65 rated for outdoor usage. Ideal for large enterprise, government, health and education institutions.
ViRDI AC2200RF (H) vs ViRDI AC2200SC (H)?
The AC2200RF (H) model from ViRDI supports 125KHz RFID cards. The AC2200SC (H) model from ViRDI supports 13.56MHz smart cards. Both models support fingerprint recognition, support Bluetooth mobile credentials, save HD images from the built-in camera and are IP65. All features of the terminals are also included in the AC2200SC (H) model. Therefore, the correct model for your access control system can easily be chosen on the basis of the used card type.
What is the ViRDI AC2200 used for?
The ViRDI AC-2200 is a biometric access control and time attendance terminal designed to secure doors, gates, and restricted areas using fingerprint authentication, card credentials, and Bluetooth mobile access.
Does the ViRDI AC2200 support mobile phone access?
Yes. The AC-2200 supports Bluetooth-based mobile credentials, allowing authorized users to unlock doors using their smartphones without requiring a physical access card.
Why does the ViRDI AC2200 include an HD camera?
The built-in HD camera captures image logs during authentication events, providing visual verification, improved audit trails, and enhanced security monitoring for access control applications.
