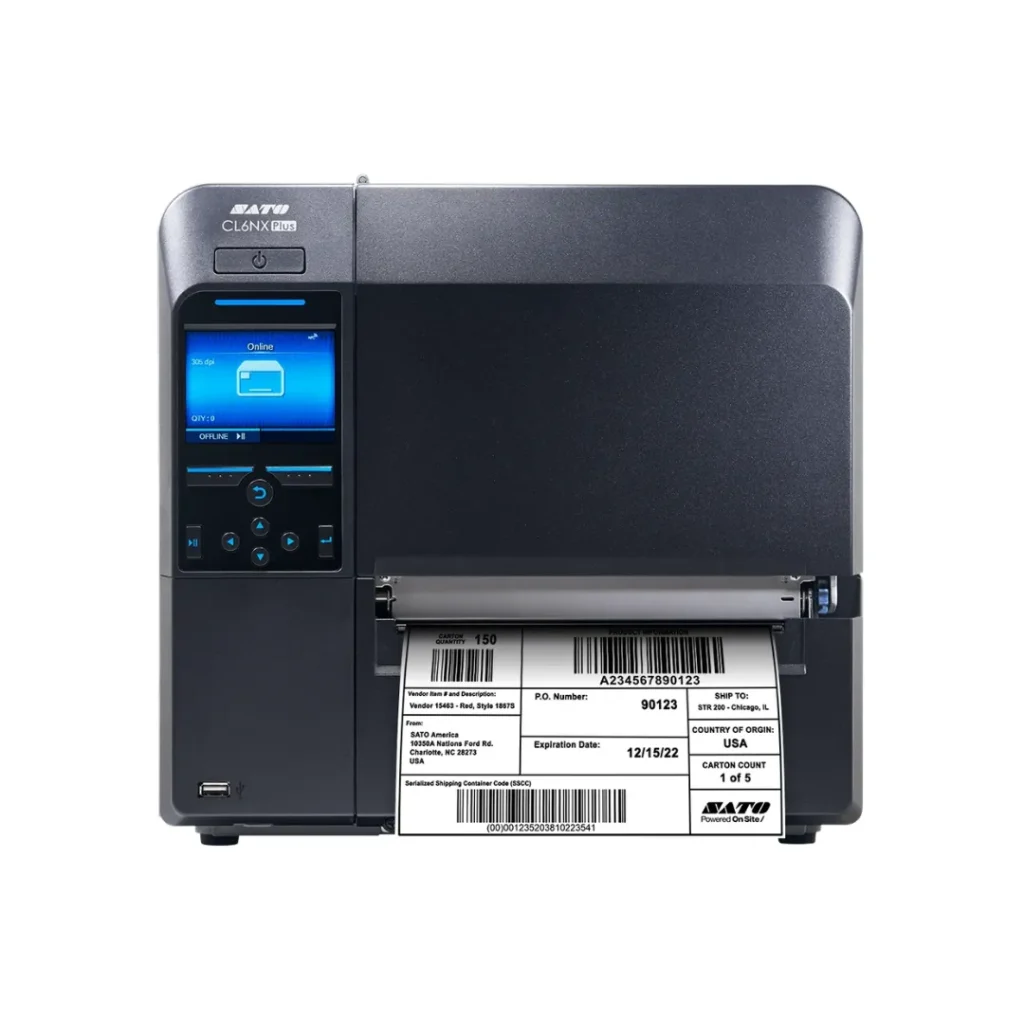

SATO CL6NX Plus industrial printer
SATO CL6NX Plus industrial printer – High-end 6-inch industrial printer for the most exacting printing requirements
- High-speed up to 10 ips for rapid label throughput.
- Supports 203, 305 dpi resolutions for crisp labels.
- Large 6.6-inch width handles big-format applications accurately.
- Tool-less maintenance with logic wear indicators simplifies upkeep.
- Optional RFID with RF Analyze streamlines smart-label operations.
Tags: Barcode Printer
The Sato CL6NX Plus is designed for track and trace operations worldwide and has improved print accuracy, smart head capabilities, and RFID* capability to satisfy mid-range to high-end label printing situations.
*NEW* Faster optimisation for RFID label encoding & printing
allows for UHF encoding and printing. The new SATO RF RFID label initial setup is greatly accelerated by the Analyse function.
Enhanced precision
CL6NX Plus is perfect for PCB labelling of ever-tinier electrical goods because of its high printing accuracy.
Easy set-up and maintenance
Tool-less parts replacement and new PurelineTM platen roller which gives operator visual indication of wear as a means of proactive maintenance. Smart print head enables tracking and monitoring of print head usage to ensure timely replacement.
Standalone printing
Using Application-enabled Printing (AEP) within printer, operator is able to connect printer with peripheral devices such as barcode scanner, keypad, etc. for PC-less printing which saves cost and space.
Easy barcode check
Install stand-kit and certified scanner (sold separately) to check 1D & 2D codes when each label is printed. Printer prints void mark on defective labels.
Dynamic integration
Multiple interfaces such as serial, parallel, LAN, USB and WLAN available. Competitive language emulations enable direct replacement of printers in legacy applications.
Sustainable innovation
Coreless ribbon uptake simplifies loading process, optional linerless kit eliminates waste associated with traditional label production.
Industrial durability
Die-cast aluminium frame, print and ribbon mechanism provide solid stability. Metal casing including front panel and side covers for protection against industrial environment.
Functional design
Bi-fold cover allows compact design and reduces workspace requirement. Snap-in print head, tool-less platen replacement minimise downtime and simplify maintenance.
| Feature | Details |
| Print Technology | Direct Thermal & Thermal Transfer |
| Print Resolution | 203 dpi, 305 dpi |
| Print Speed | Up to 10 ips (254 mm/sec) |
| Max Print Width | 6.6 inches (167.5 mm) |
| Media Handling | Roll up to 10” OD, 600m ribbon support |
| RFID Support | Optional UHF encoding with RF Analyze optimization |
| Interfaces | USB, Ethernet, Serial, Parallel, NFC; optional Wi-Fi |
| Display | 3.5” full-color LCD with help videos |
| Dimensions | 338 mm (W) × 338 mm (H) × 498 mm (D) |
| Weight | Approx. 20 kg (without media/ribbon) |
Printer Options
Real-time clock (RTC)
Cutter
Dispenser
Dispenser with rewinder
WLAN
UHF RFID Kit
GET A FREE QUOTE
Applications
Food Service &
Distribution
product labels
Healthcare
GS1 lable,FDA labels
Wholesale
pallet label
Manufacturing
parts & products lables, GHS labels
Automotive
Product labels, Ingredient labels,
expiry labels
Transport &
Logistics
shipping labels, pallet labels
Industrial Barcode Printer
Why SATO CL6NX Plus industrial printer
- High-resolution printing provides sharp text, barcodes, and graphics at 203 and 305 dpi.
- Quick output speeds: to meet the demands of high-demand operations, printers can print up to 10 inches per second.
- Labels up to 6.6 inches wide are supported for wider applications thanks to the wide-format functionality.
- Versatile use cases: perfect for large-format printing needs such as pallet labels and compliance labels.
- Industrial-grade performance: designed for accuracy, speed, and dependability under harsh conditions.
The Sato CL6NX Plus offers exceptional total cost of ownership, easy integration, and long-lasting dependability because to its sturdy die-cast aluminium frame and cutting-edge connectivity options. It guarantees that your labelling processes are effective, scalable, and future-ready when combined with SATO’s Application Enabled Printing (AEP) and remote administration capabilities.
The most demanding labelling applications from a variety of industries, including manufacturing, logistics, healthcare, and retail, may be handled by the SATO CL4NX Plus Industrial Printer. Constructed with speed, accuracy, and durability in mind, it provides outstanding performance while streamlining daily tasks.
The CL4NX Plus guarantees clear, precise labels every time with print resolutions of 203, 305, and 609 dpi and print rates of up to 14 inches per second. It is perfect for sectors that need precise, detailed output because of its sophisticated Micro-Label Print Mode, which reliably prints very small labels.
To make your life easier, this printer has a number of really useful functions. It features a 3.5-inch colour display that displays useful movies directly on the screen, a broad 60° print-head aperture, and the ability to replace the platen and head without the need for any tools. All of these clever tiny details contribute to decreased downtime and smooth operations.
With support for USB, Ethernet, RS-232C, parallel, NFC, and optional dual-band Wi-Fi, connectivity is yet another advantage of the CL4NX Plus. Additionally, it has built-in RF analysis tools that speed up and improve the reliability of setup, as well as RFID printing and encoding capabilities. SATO’s Application Enabled Printing (AEP) enables PC-less operation for companies that need smart workflows by integrating peripherals like keypads and scanners.
The CL4NX Plus is a robust, effective, and future-ready device with a die-cast aluminium frame that can accommodate big media rolls and long ribbons to lower the frequency of reloads. It offers businesses the best total cost of ownership and maximum uptime when paired with SATO’s remote management solutions.
SATO CL6NX Barcode Printer at the Best Price in Dubai
With committed after-sales service, eTOP offers the SATO CL6NX Plus industrial barcode printer at the most competitive price in the UAE. As a top provider of barcode supplies, we assist companies all across the United Arab Emirates in implementing effective labelling and SATO barcode printer solutions that are safe, long-lasting, and reasonably priced.
