WALK THROUGH METAL DETECTOR: UB500
- Description
- Reviews (0)
- Product description
- Technical data
Description

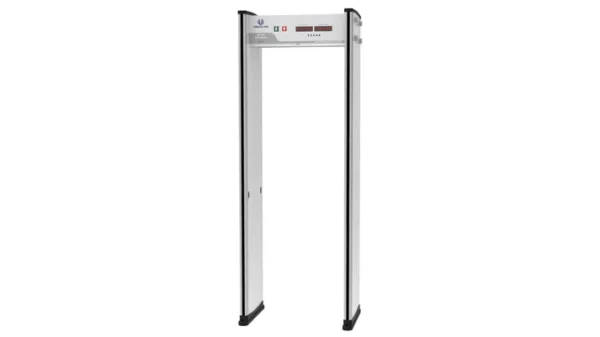

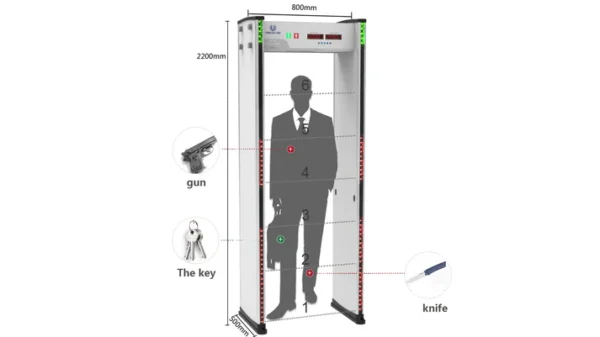

UB500 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.
Be the first to review “WALK THROUGH METAL DETECTOR: UB500”
UB500 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.

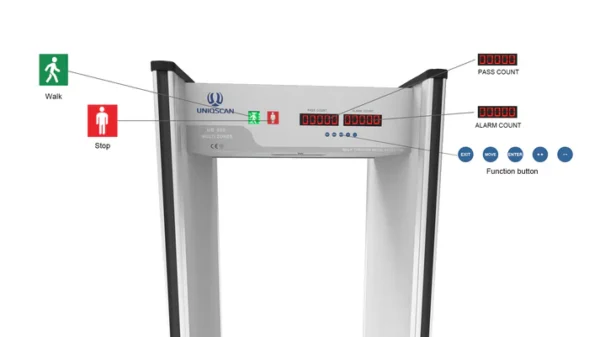

The UB-500’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operate； Panel display function digital display, counting the number of passing and the number of alarms.
- Easy assembly: designed with only 2 pieces of cables and 8 screws, simply-to-follow instructions
- Alarm strength indicator on the control panel; Password protection, only the authorized person can operate.
- Sound & LED alarm: Both Side LED indicator

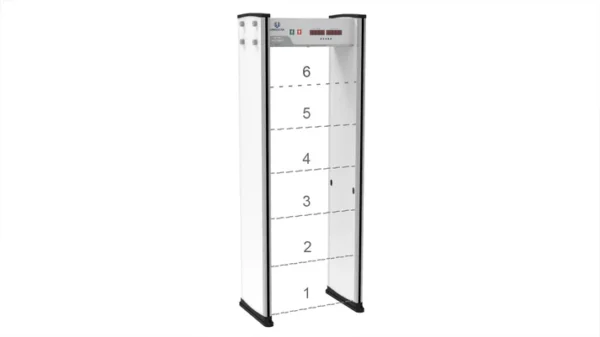

- 6 zones, Sensitivity adjustable: Each zone has 100 sensitivity level
- 18 zones, Sensitivity adjustable: Each zone has 100 sensitivity level
- Program Self-diagnostic when power on,
- no need initial or periodic calibration;
- Modularization design, easy for maintenance and replacement
- Using high-density fireproof material;
- Program Self-diagnostic when power on, no need initial or periodic calibration
- Harmless to the human body: is harmless
- with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
TRUE QUALITY
SAFE & HARMLESS
Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
CERTIFICATIONS
SCOPE OF APPLICATION
It is suitable for quick security checks, where intelligent management of channels is required, such as subway stations, customs ports, airports, railway stations, hospitals, schools, communities, supermarkets, clubs, enterprises, and institutions.
| FUNCTION PARAMETER | |
| Detection Zones | 18 zone |
| Multi-Unit Synchronization | Manual |
| Visual Displays | Digital tube display |
| Access Control | Button |
| Control Outputs | Panel light and buzzer |
| Sensitivity | Each zone 0-99, 100 levels adjustable |
| Frequency | 5.9K-8.6KHz continuously adjustable |
| Smallest detectable unit | One yuan coin |
| Infrared beam mode | One-way, two-way, can be closed |
| Remote Control | No remote control |
| Infrared passing speed | 60/min |
| Environmental Signal Interference Detection | Yes |
| ELECTRICAL PARAMETERS | |
| Power | AC110V（220V）/60HZ（50HZ） |
| Working current | 1A |
| Power consumption | <12W |
| USE ENVIRONMENT | |
| Protection class | IP53 |
| Use environment | Indoor only |
| Operating Temperatures | -20℃～45℃ |
| Working humidity | 0-0.95,no condensation |
| MATERIAL | |
| Construction | MDF, gray |
| Cable connector | DB25 |
| Installation method | Vertical installation |
