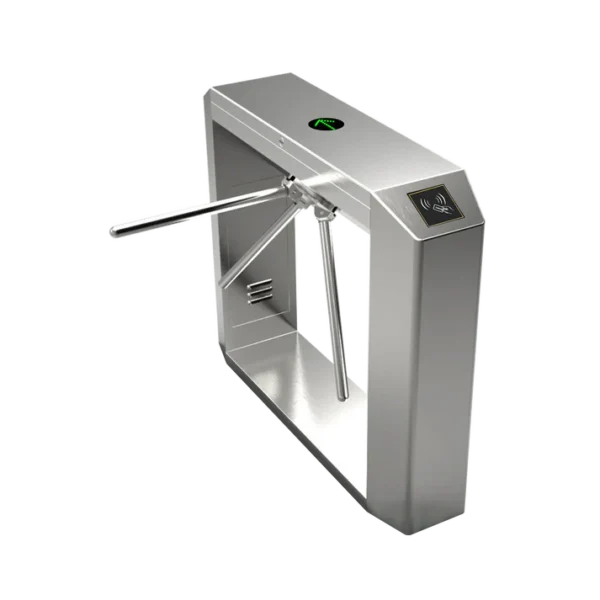

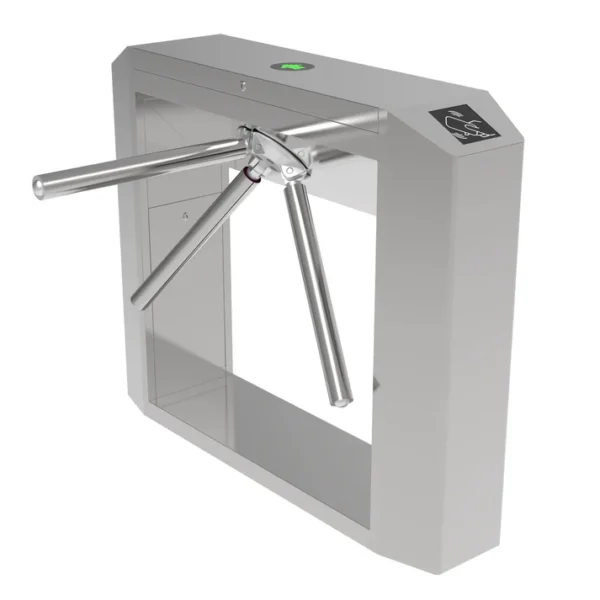

UT-TRI-5612
Description
◆ Opening time: 0.2 seconds.
◆ Material: 304 # stainless steel
◆ Thickness: Head: 1.2mm, Cabinet:1.0mm
◆ Support force of arm: 80kg
◆ Speed: 35 person/min
◆ Passage width: ≤550 mm
◆ Direction: Bi-directional
◆ Motor: 24V/30W brushless.
◆ Positioning accuracy: 1/500 yards.
◆ Adaptation humidity: 5% – 90%
- Description
- Reviews (0)
- Product description
- Technical data
Description
Description
1. Shell processing technology: using laser, bending, cutting, welding, polishing, polishing, and other
processes.
2. Rod length/thickness: 500 (mm) / ¢ 38 stainless steel tube.
3. Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system).
4. Working environment: indoors and outdoors.
5. The Rod unlocks quickly and reliably.
6. When power is off, the rod automatically drops.
7. Entrance and exit setting: Allowed or Forbidden.
8. Customized function: Counting function, Memory Function, LED indicator, Voice broadcast.
9. Can be connected to standard input and output interface.
10. High-level semi-automatic intelligent mechanism.
11. Easy to work with the Access control system
12. Passage LED indicator, Passage Mode setting.
13. Using a standard electrical interface, it can easily integrate magnetic stripe cards, barcode cards, ID cards, IC cards, and other card readers on the device.
Reviews (0)
Be the first to review “UT-TRI-5612”
Product description






Product package

Factory shots



Technical data
Size | 1200*280*980mm |
Opening time | 0.2 seconds |
Thickness: Head | 1.2mm, Cabinet:1.0mm |
Support force of arm | 80kg |
Speed | 35 person/min |
Passage width | ≤550 mm |
Direction | Bi-directional |
Motor | 24V / 30W brushless |
Positioning accuracy | 1/500 yards |
Adaptation humidity | 5%-90% |
