Ensure secure, reliable, and scalable floor access management with ZKTeco EC10 and EX16 elevator control solutions. Perfect for offices, commercial buildings, and residential towers across Dubai and the UAE, these systems restrict access based on fingerprints, proximity cards, or passwords while offering flexible scheduling and multi-floor control.
ZKTeco EC10 and EX16
- Restrict up to 58 floors with EC10 and EX16 combination.
- Fingerprint, RFID card, and password-based access.
- Daisy-chain multiple EC10 panels for larger buildings.
- Supports alarms, lights, and additional locks.
The ZKTeco EC10 panel can manage up to 10 floors, and each EX16 extension board adds control for 16 additional floors. Together, a single EC10 setup can handle up to 58 floors, and multiple EC10 units can be daisy-chained for larger buildings. The system supports optional fingerprint authentication, RFID cards, and password verification, along with time-based access schedules or unrestricted Passage mode during business hours. Integration via TCP/IP or RS485 allows seamless connection to PCs and third-party software, making floor access management simple, secure, and scalable.
EC10 Panel:
Floor Button Control Relay: 10
Fingerprint Capacity (optional): 3,000
RFID Card Capacity: 30,000
Event Capacity: 100,000
Communication to PC: TCP/IP, RS485
Supports up to 3 EX16 extension boards
Power Supply: 12V DC 1A
Dimensions (L×D×H): 242 × 95 × 60 mm
Net Weight: 0.8 kg

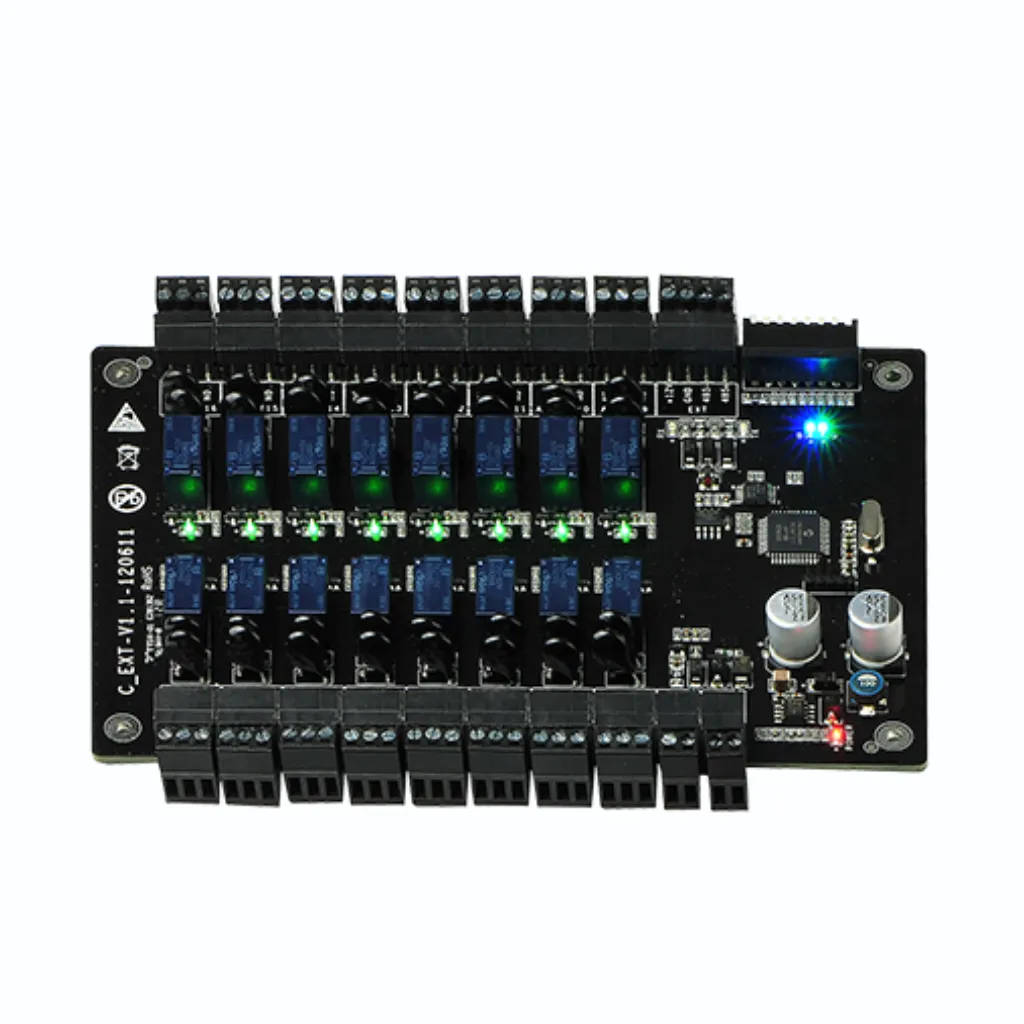

EX16 Extension Board:
Floor Button Control Relay: 16
Communication to EC10: RS485
RS485 Address: Set by DIP switch
Power Supply: 12V DC 1A
Dimensions (L×D×H): 160 × 106 mm
Net Weight: 0.2 kg
