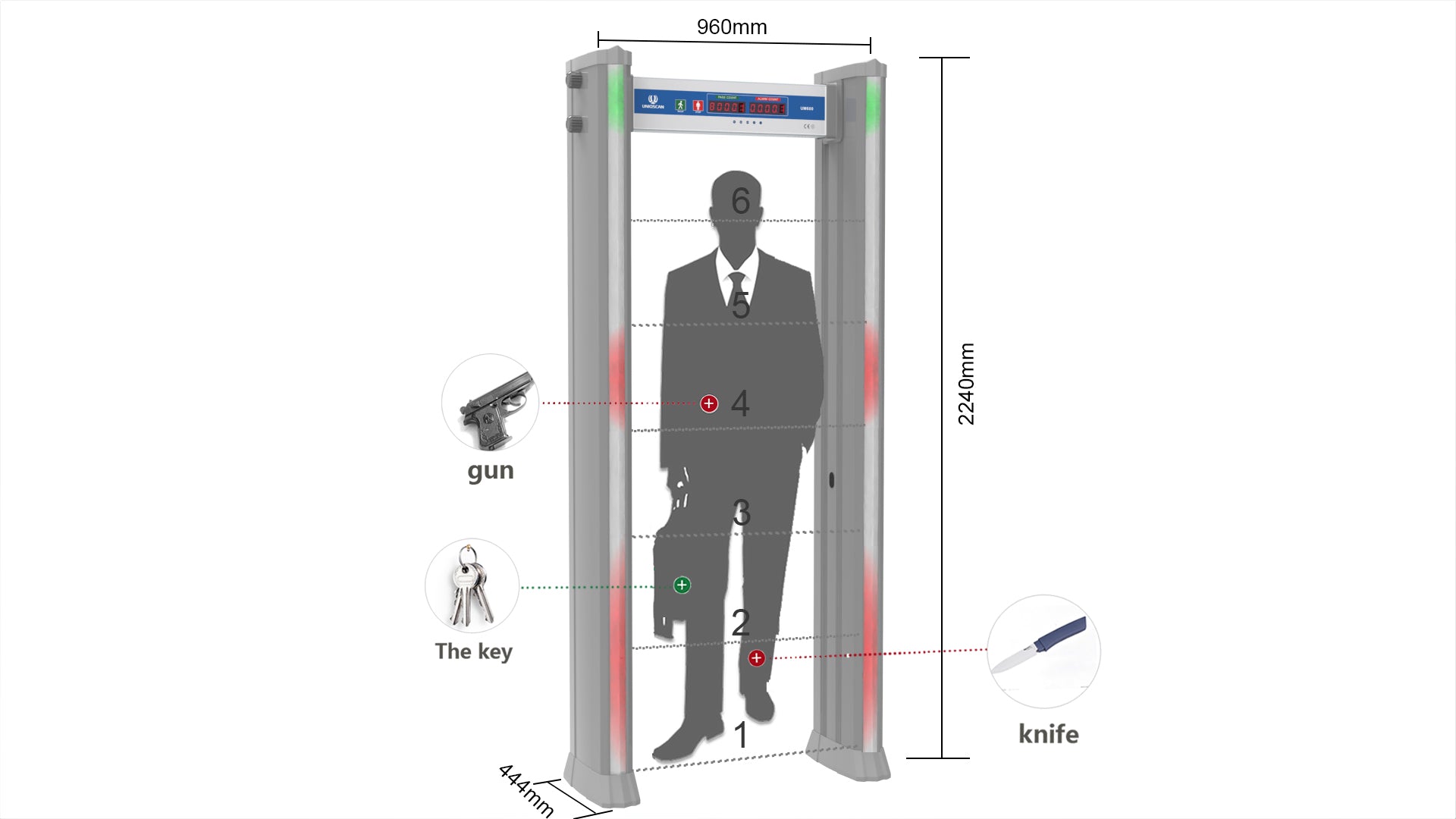

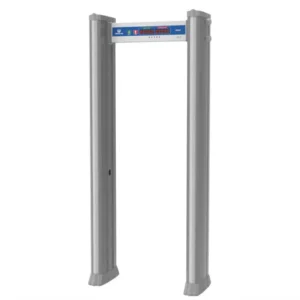

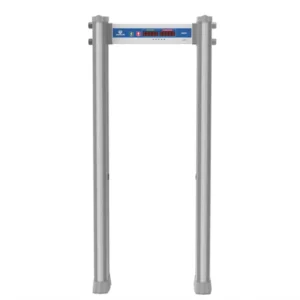

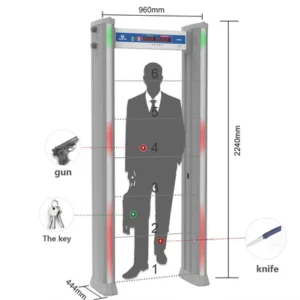

Walk Through Metal Detector: UM600
Walk through Metal Detector

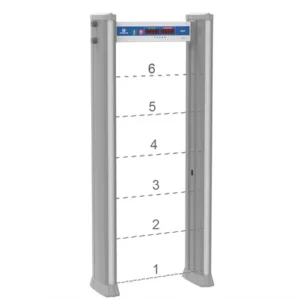

◆Detection Zones: 18zone
◆Multi-Unit Synchronization: Manual
◆Visual Displays: Digital tube display
◆Access Control: Button
◆Control Outputs: Alarm area indicator and buzzer
◆Sensitivity: Each zone 0-999, 1000 levels adjustable
◆Frequency: 4K-8KHz continuously adjustable
◆Smallest detectable unit: one yuan coin
◆Infrared beam mode: One-way, two-way, can be closed
◆Remote Control: No remote control
◆Infrared passing speed: 60/min
◆Environmental Signal Interference Detection: Yes
Availability : Ex-Stock, Prior to sales
- Description
- Product description
- Technical data
Description

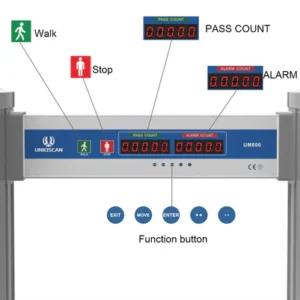

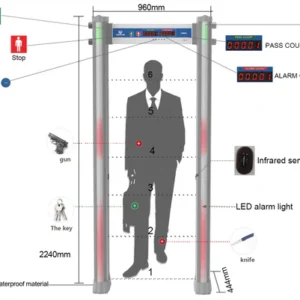

The UM-600’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operate. Sound & LED alarm: Both Side LED indicators, easily show where the metal is, Automatically count passengers and alarm times.
Walk through Metal Detector UM-600’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operate. Sound & LED alarm: Both Side LED indicators, easily show where the metal is, Automatically count passengers and alarm times.
TRUE QUALITY
SAFE & HARMLESS
Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
CERTIFICATIONS
SCOPE OF APPLICATION
Walk through metal detector is suitable for quick security checks, where intelligent management of channels is required, such as subway stations, customs ports, airports, railway stations, hospitals, schools, communities, supermarkets, clubs, enterprises, and institutions.
| FUNCTION PARAMETER | |
| Detection Zones | 18 zone |
| Multi-Unit Synchronization | Manual |
| Visual Displays | Digital tube display |
| Access Control | Button |
| Control Outputs | Alarm area indicator and buzzer |
| Sensitivity | Each zone 0-999, 1000 levels adjustable |
| Frequency | 4K-8KHz continuously adjustable |
| Smallest detectable unit | one yuan coin |
| Infrared beam mode | One-way, two-way, can be closed |
| Remote Control | No remote control |
| Infrared passing speed | 60/min |
| Environmental Signal Interference Detection | Yes |
| ELECTRICAL PARAMETERS | |
| Power | AC110V（220V）/60HZ（50HZ） |
| Working current | 1A |
| Power consumption | <12W |
| USE ENVIRONMENT | |
| Protection class | IP65 |
| Use environment | Outdoor |
| Operating Temperatures | -20℃～45℃ |
| Working humidity | 0-0.95,no condensation |
| MATERIAL | |
| Construction | UPVC+PC |
| Cable connector | DB15 |
| Installation method | Vertical installation |
