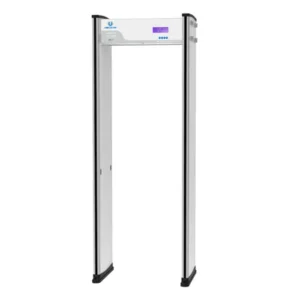

Walk Through Metal Detector: UB600 PRO
Description
Availability : Ex-Stock, Prior to sales
- Description
- Product description
- Technical data
Description
UB600 PRO walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.
The UB600 PRO Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operateï¼› Sound & LED alarm: Both Side LED indicators, easily show where the metal is, Automatically count passengers, and alarm times.
- Sound & LED alarm: Two Sides LED indicator easily shows where the metal isï¼›5-digits counter: Automatically count passengers and alarm times
- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
- Sensitivity Test piece: One yuan Coin, omnidirectional detection
- Password protection, only the authorized person can operateï¼› Waterproof can be used outdoor
- Sensitivity adjustable: Each zone has 255 sensitivity level

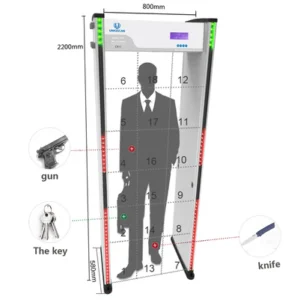

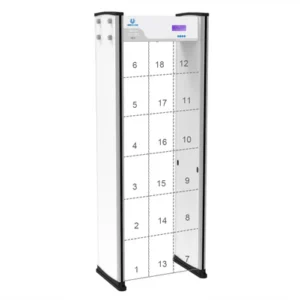

- 18Â detecting zones, Simultaneous alarm from multi- zones
- Easy assembly: portable design, only 4 screws, Simply follow instructions.
- Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
- Program Self-diagnostic when power on, no need for initial or periodic calibrationï¼›
- Modularization design, is easy for maintenance and replacement.
TRUE QUALITY
SAFE & HARMLESS
CERTIFICATIONS
SCOPE OF APPLICATION
It is suitable for quick security checks, where intelligent management of channels is required, such as subway stations, customs ports, airports, railway stations, hospitals, schools, communities, supermarkets, clubs, enterprises, and institutions.
| FUNCTION PARAMETER | |
| Detection Zones | 18 zone |
| Multi-Unit Synchronization | Manual |

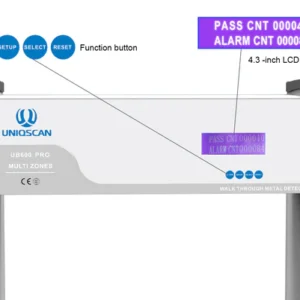

| Visual Displays | Digital tube display |
| Access Control | Button |
| Control Outputs | Alarm area indicator and buzzer |
| Sensitivity | Each zone 0-255, 266 levels adjustable |
| Frequency | 5.6K-8.6KHz continuously adjustable |
| Smallest detectable unit | one yuan coin |
| Infrared beam mode | One-way, two-way |
| Remote Control | 15m |
| Infrared passing speed | 60/min |
| Environmental Signal Interference Detection | Real-time display of signal strength |
| ELECTRICAL PARAMETERS | |
| Power | AC110V（220V）/60HZ（50HZ） |
| Working current | 1A |
| Power consumption | <12W |
| USE ENVIRONMENT | |
| Protection class | IP53 |
| Use environment | Intdoor |
| Operating Temperatures | -20℃～45℃ |
| Working humidity | 0-0.95,no condensation |
| MATERIAL | |
| Construction | MDF, Gray |
| Cable connector | DB25 |
| Installation method | Vertical installation |
