ViRDI AC-1100 Multi-smartcard Recognition Terminal
Smart card reader terminal for various multi smart card applications. Supports reading of 125KHz cards as well as 13.56MHz cards. The terminal is suitable for low risk applications.
- Supports multiple card technologies and Bluetooth reading.
- Supports up to 200,000 users. 1,000,000 Event Log.
- The reader comes with a 4in screen for easy GUI
- VoIP Supported
- Bluetooth Mobile Key Terminal
Tags: Fingerprint Sensors
Bluetooth enabled, 200,000 users, touchscreen
The ViRDI Ac1100 Proximity Card Reader Terminal is an Access Control Terminal that supports various smart card technologies in order to provide an application ready solution for a low risk access control environment. AC-1100 provides smart card reading for 125KHz or 13.56MHz cards, a 4in screen with a wide GUI interface, and VoIP capability. Optional features include Weigand I/O for connection of card reader terminals, and support for OSDP RS485 interface connection to other access control systems. AC-1100 also supports optional Wi-Fi networking of the reader.
AC-1100 is access control reader, which enable the access control and Time & Attendance management by utilizing the Bluetooth enabled mobile phone and the respective App: UNIS-B (for administration) and V-CARD (for mobile key users). As for connection to the network or server, it is done by means of a TCP/IP connection or a USB cable. The reader is distributed by access control and Time & Attendance solutions provider in the Middle East eTOP. Competitive prices and fast delivery are guaranteed.
| Specification | Details |
| Model | ViRDI AC-1100 |
| Variants | AC-1100 RF (125KHz RFID), AC-1100 SC (13.56MHz Smart Card) |
| Authentication Methods | RFID Card, Smart Card, Bluetooth Mobile Credential, PIN |
| CPU | 1GHz Single Core Processor |
| Display | 4.0″ Color Touch LCD (480 × 800) |
| Memory | 512MB RAM |
| Storage | 8GB eMMC Flash Memory |
| Camera | Built-in VGA Camera with Flash |
| User Capacity | 200,000 Users |
| Card Capacity | 200,000 Cards |
| Event Log Capacity | 1,000,000 Logs |
| Image Storage | Up to 35,000 Images |
| Card Technology (RF) | 125KHz EM RFID Cards |
| Card Technology (SC) | 13.56MHz Smart Cards / MIFARE |
| Bluetooth Support | Yes (Mobile Access Credential) |
| VoIP Support | Yes |
| TCP/IP | Yes (10/100 Mbps) |
| RS-485 Communication | Yes (OSDP Supported) |
| RS-232 Communication | Yes |
| Wiegand Interface | Wiegand In/Out |
| USB Port | USB for Data Backup & Firmware Upgrade |
| Wireless LAN | Optional |
| Input Ports | 4 Inputs (1 Exit Button, 3 Monitoring Inputs) |
| Output Ports | 2 Relay Outputs |
| Lock Control | EM Lock, Strike Lock, Motor Lock, Automatic Door |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | Less than 90% RH |
| Power Supply | DC 12V (Optional DC 24V) |
| Power Consumption | Approx. 7W |
| Dimensions | 80 × 150 × 16 mm |
| Certifications | CE, FCC, RoHS, KC |
| Applications | Access Control, Time Attendance, Visitor Management, Building Security |
| Installation Type | Indoor Wall Mount |
| Mobile Access | Supported through Bluetooth Credentials |
| OSDP Support | Yes |
| Third-Party Integration | Supported via Wiegand, RS-485 and TCP/IP |
GET A FREE QUOTE
Support Bluetooth Communication
- With using Bluetooth, It provide the convenient mobile
access control solution.
Support Multi Card Technology
- AC-1100 features various multi-smart card support
4inch Color LCD Screen
- 4inch Color LCD Screen with clean GUI.
wide and easy to use GUI.

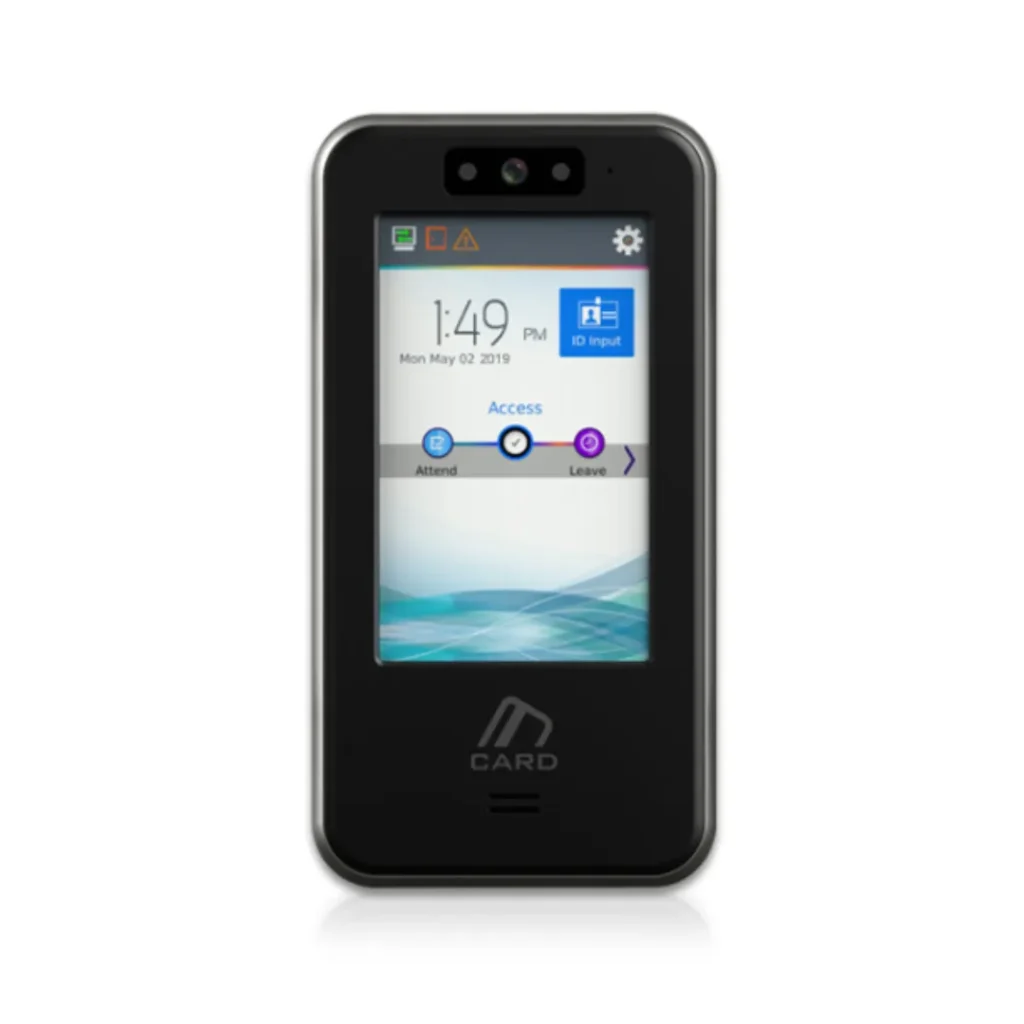

ViRDI AC1100 RF – 125KHz RFID Access Control Reader
ViRDI AC1100 RF is high performance 125KHz RFID reader for access control. ViRDI AC1100 RF reader provides fast and reliable card reading for organizations that use cards for access control. ViRDI AC-1100 RF is suitable for offices, schools, time attendance systems, apartments, warehouses, shops and etc. This reader supports a wide range of access control systems by supporting TCP/IP, RS-485, Wiegand and OSDP communication protocols.
AC-1100 RF supports all communication method such as TCP/IP, RS-485, Wiegand and OSDP. It also has a 4inch Color LCD 320×240 wide and easy to use GUI for various information input and display. It also support Bluetooth mobile access credential. AC-1100 RF can store up to 200,000 users and 1,000,000 event logs.
- Supports 125KHz RFID Proximity Cards
- Bluetooth Mobile Access Credential Support
- 4-Inch Color LCD Display
- Up to 200,000 Users Capacity
- Stores 1,000,000 Event Logs
- TCP/IP, RS-485, Wiegand and OSDP Support
- Optional Wi-Fi Connectivity
- Suitable for Time Attendance and Access Control
- Fast Authentication and User Identification
- Easy Integration with Existing Security Systems

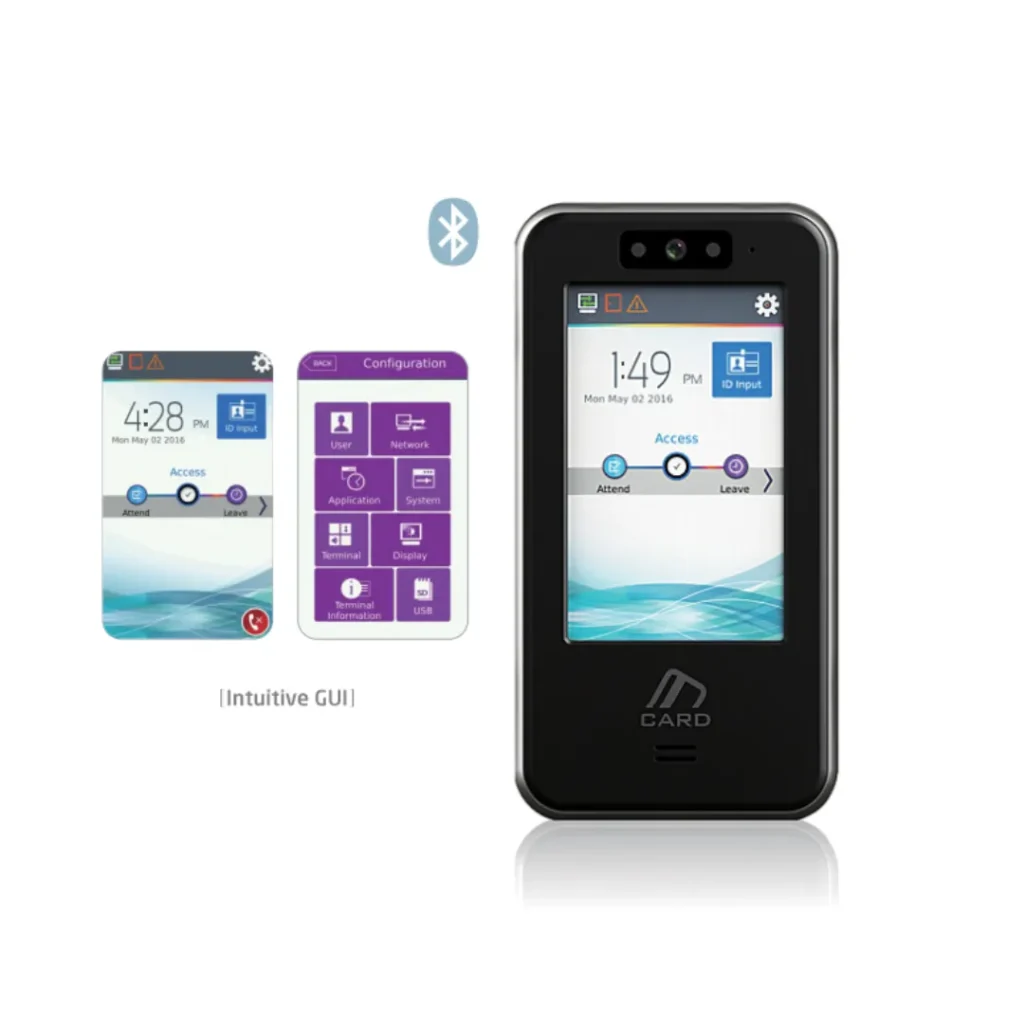

ViRDI AC1100 SC – 13.56MHz Smart Card Reader
(Smart Card Access Control Terminal) for Time Attendance and Access Control
This Access Control Terminal reads 13.56MHz Smart Cards, including MIFARE Cards and many other smart card formats. It is used in corporate offices, government buildings, time and attendance facilities, hospitals, banks and many other high security facilities where smart card access control can add an extra layer of security, and also flexibility to use cards and other credentials.
Modern access control is rapidly evolving to become even more advanced in terms of utilizing various methods to increase security and convenience of access control. ViRDI, a pioneer in the development of smart card access control readers, designed the ViRDI AC1100 SC smart card reader to be equipped to read not only smart cards, but also to work with users’ mobile devices via Bluetooth to grant them access to secured areas. With a large 4″ color LCD display, this smart card access control reader, which is also a time and attendance terminal, is ideal for corporate offices, hospitals, banks, as well as other government and private facilities, using various methods of communication such as VoIP as well as OSDP, TCP/IP, RS-485 and Wiegand for connection to an existing security system. ViRDI AC1100 SC supports up to 200,000 users with a record of 1,000,000 event logs, thus is perfectly suitable for use in a wide array of medium to large-sized facilities.
ViRDI AC1100 SC supports up to 200,000 users and 1,000,000 event logs.
Key Features of ViRDI AC-1100 SC
- Supports 13.56MHz Smart Card Technologies
- Compatible with MIFARE and Secure Smart Cards
- Bluetooth Mobile Credential Access
- Large 4-Inch Color LCD Interface
- Supports Up to 200,000 Users
- Stores 1,000,000 Event Logs
- OSDP, TCP/IP, RS-485 and Wiegand Communication
- VoIP Integration Capability
- Optional Wireless Network Connectivity
- Ideal for High-Security Access Control Applications
What is the difference between ViRDI AC1100 RF and ViRDI AC1100 SC?
The main difference is the card technology they support. The ViRDI AC1100 RF supports 125KHz RFID proximity cards, making it ideal for standard access control applications. The ViRDI AC1100 SC supports 13.56MHz smart cards, including MIFARE-based credentials, providing higher security and advanced card functionality for enterprise and government environments.
Which is better: ViRDI AC1100 RF or ViRDI AC1100 SC?
Neither model is universally better; the right choice depends on your security requirements. The AC-1100 RF is a cost-effective solution for basic access control, while the AC-1100 SC offers enhanced security through encrypted smart card technology and is better suited for organizations requiring stronger credential protection.
Can the ViRDI AC1100 be used for both access control and time attendance?
Yes. The ViRDI AC1100 series can be used for both access control and employee time attendance management. It records user transactions, stores up to 1,000,000 event logs, and integrates with attendance and workforce management software.
Does ViRDI AC1100 support mobile phone access?
Yes. The ViRDI AC1100 supports Bluetooth-based mobile credentials, allowing users to unlock doors using compatible smartphones through ViRDI’s mobile access platform.
What card technologies are supported by the ViRDI AC-1100 series?
Depending on the model, the AC-1100 supports:
125KHz RFID Proximity Cards (AC-1100 RF)
13.56MHz Smart Cards and MIFARE Cards (AC-1100 SC)
Bluetooth Mobile Credentials
This flexibility allows organizations to choose the credential type that best fits their security requirements.
How many users can the ViRDI AC-1100 support?
The ViRDI AC-1100 can manage up to 200,000 users and store up to 1,000,000 event logs, making it suitable for small businesses, large enterprises, universities, hospitals, and government facilities.
ViRDI AC-1100 vs Suprema Card Readers: Which is the better choice?
Both brands are widely used in access control applications. ViRDI AC-1100 offers strong support for RFID, smart cards, Bluetooth credentials, OSDP communication, and large user capacity. Suprema readers are known for their biometric integration capabilities. Organizations looking for a dedicated card reader with mobile credential support often choose the ViRDI AC-1100, while biometric-focused deployments may consider Suprema solutions
ViRDI AC-1100 vs HID Signo Readers: What are the differences?
The ViRDI AC-1100 is an access control terminal with a built-in LCD interface, event storage, Bluetooth credential support, and standalone operation capabilities. HID Signo readers primarily function as credential readers and typically require integration with an access control controller. Businesses seeking a feature-rich standalone terminal often prefer the ViRDI AC-1100.
Is ViRDI AC-1100 available in the UAE?
Yes. ViRDI AC-1100 RF and AC-1100 SC access control readers are available in the UAE for access control and time attendance projects from eTOP Trading. Organizations can deploy these readers in single-door installations or enterprise-wide access management systems.
