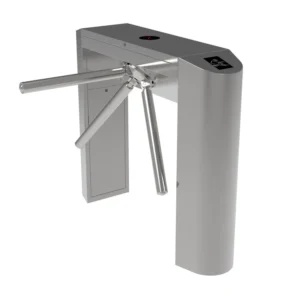

UT-TRI-5608
Description

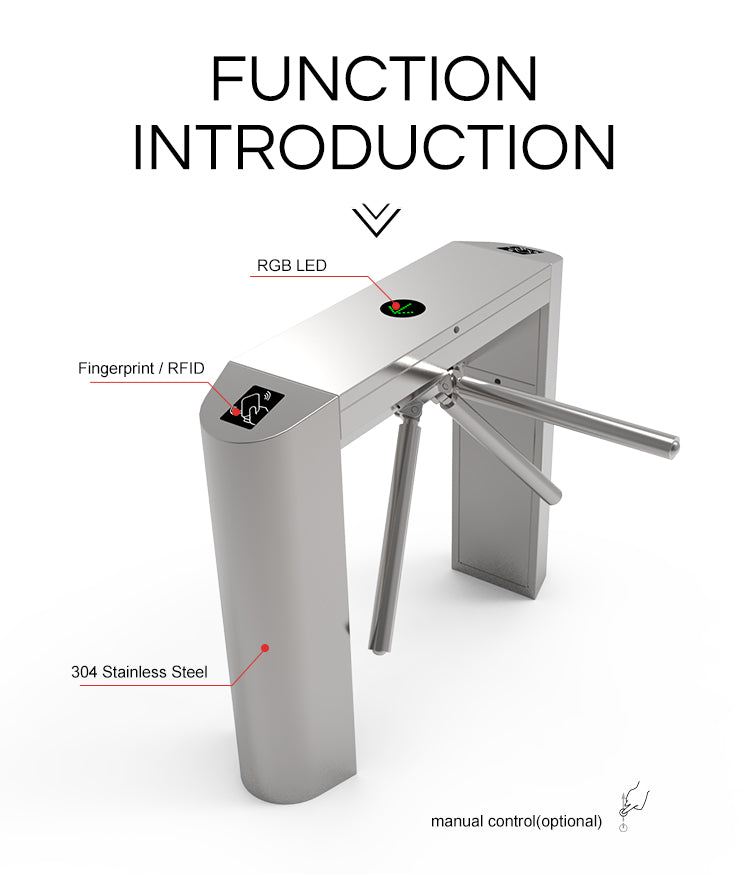

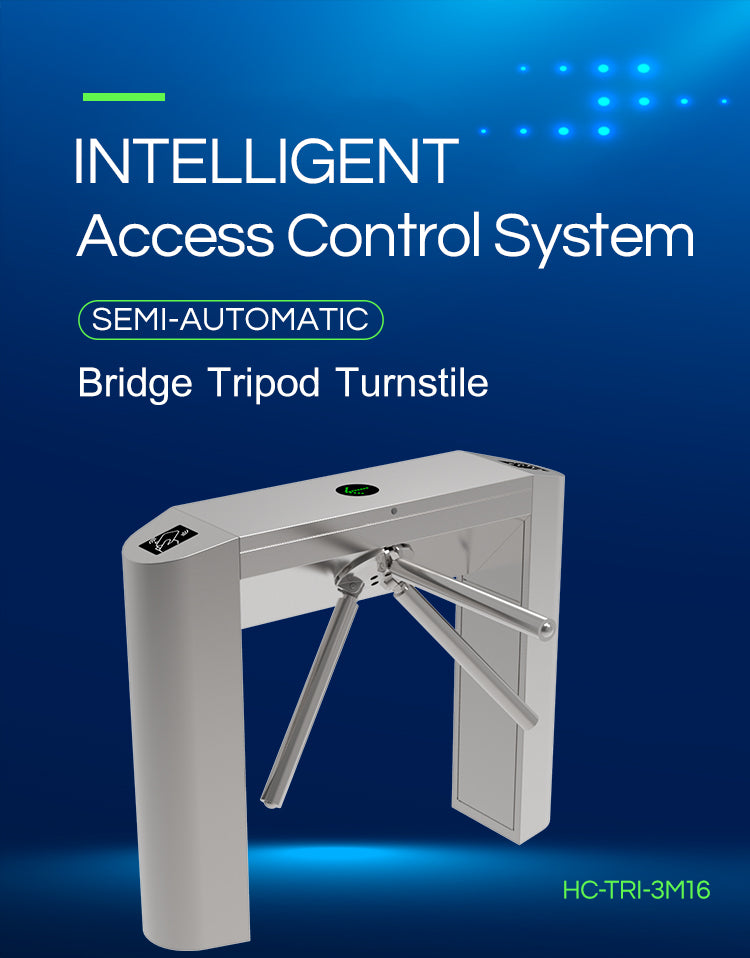

â—† Semi-automatic three-roller gate movement, stainless steel gate lever;
â—† It has the function of power off and drop bar, and remote control can also be added for drop bar control;
â—† LED indicator light, the valid card is green, and the standby is red;
â—† Scope of application: campus, community, etc.
Availability : Ex-Stock, Prior to sales
- Description
- Product description
- Technical data
Description
1) Semi-automatic three-roller gate movement, stainless steel gate lever;
2) It has the function of power off and drop bar, and remote control can also be added for drop bar control;
3) LED indicator light, the valid card is green, and the standby is red;
4) Scope of application: campus, community, etc.
1) Semi-automatic three-roller gate movement, stainless steel gate lever;
2) It has the function of power off and drop bar, and remote control can also be added for drop bar control;
3) LED indicator light, the valid card is green, and the standby is red;
4) Scope of application: campus, community, etc.
| Size | 1200x280x980mm |
| Â Material | 1.2/0.8 mm 304d stainless steel |
| Channel width | <=550mm |
| Passing speed | 30-35 people/min |
| Unlock time | 0.2 seconds |
| Ambient temperature | -25~+70 |
| Input voltage | 100-240V, 50/60HZ |
| Drive voltage | 24V |
| Power | 30W |
| Opening signal input | dry contact |
