UT-FLA-5702
Description
â—† Brushed motor, 3 pairs of infrared;
â—† The door wings can be opened directly after power failure to meet the needs of fire escapes;
â—† With automatic reset, infrared anti-pinch function;
â—† A variety of working modes are optional;
â—† Scope of application: campus, community, etc
Availability : Ex-Stock, Prior to sales
- Description
- Product description
- Technical data
Description
1) Brushed motor, 3 pairs of infrared;
2) The door wings can be opened directly after power failure to meet the needs of fire escapes;
3) With automatic reset, infrared anti-pinch function;
4) A variety of working modes are optional;
5) Scope of application: campus, community, etc.
1) Brushed motor, 3 pairs of infrared;
2) The door wings can be opened directly after power failure to meet the needs of fire escapes;
3) With automatic reset, infrared anti-pinch function;
4) A variety of working modes are optional;
5) Scope of application: campus, community, etc.

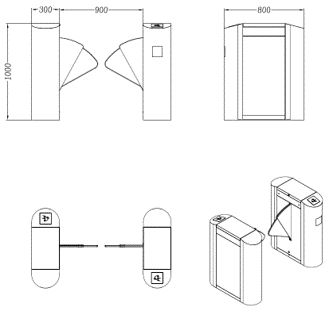

| Size | 800*300*1000mm |
| Material | 1.2mm 304 stainless steel |
| Channel width | 550mm |
| Traffic speed | 35p/m |
| Unlock time | 0.2 seconds |
| Input voltage | 100-240V |
| Drive voltage | 24V |
| Open signal input | dry contact |
