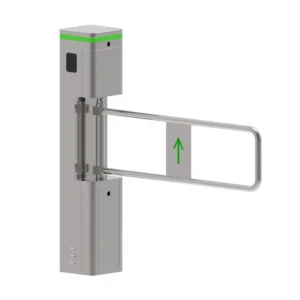

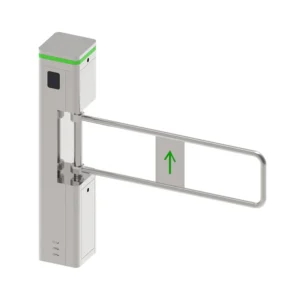

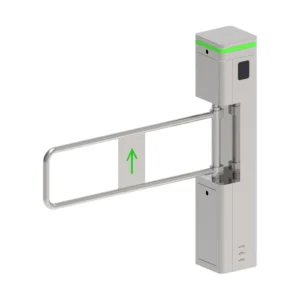

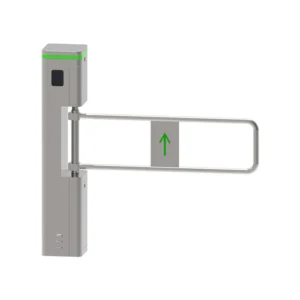

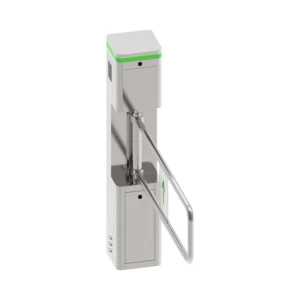

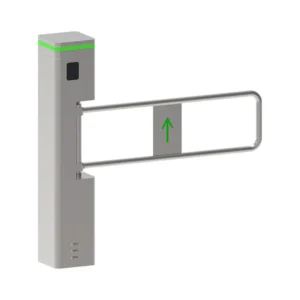

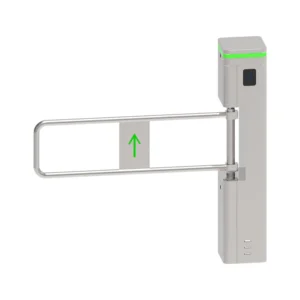

Swing Turnstile: UT-SWI-5802
Uniqscan UT-SWI-5802 Swing Turnstile Specifications
Description
Availability : Ex-Stock, Prior to sales
- Description
- Product description
- Technical data
Description
Pedestrian Control Gates

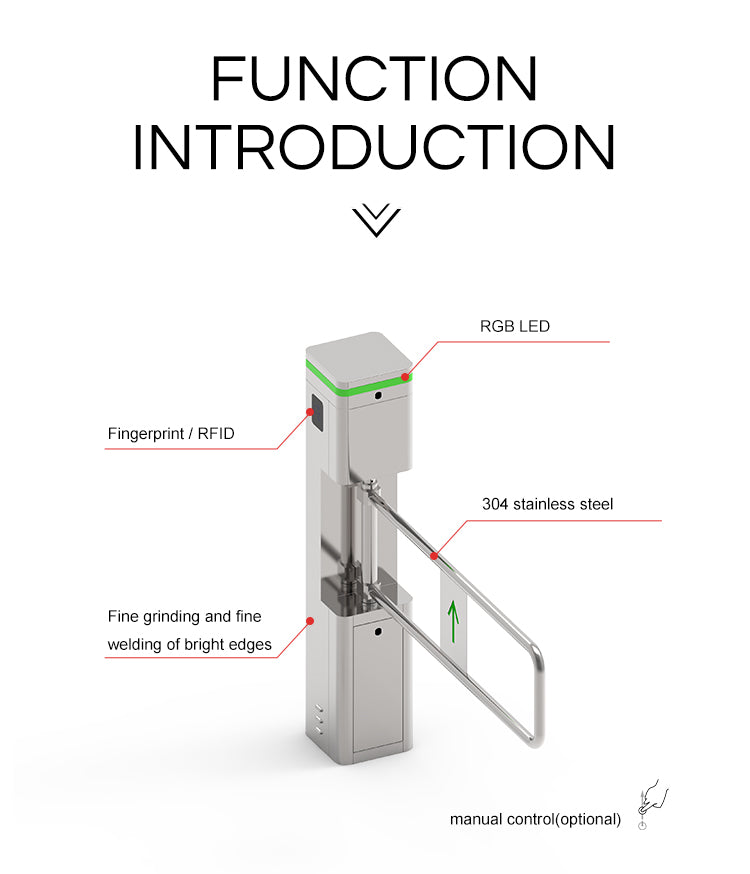

1) Cylindrical swing gate movement, 40K 20W DC brush motor; 1.2mm SUS304 No. 400 wire drawing
2) Fine grinding and fine welding bright edge process;
3) Pedestrian Control Gates With automatic reset function, after the pedestrian reads the valid card, if the pedestrian does not pass within the specified time of the system, the system will automatically cancel the pedestrian’s permission to pass this time;
4) The LED indicator light indicates that the valid card is green, and the illegal card is red;
5) The unified standard external electrical interface can be connected with various card readers, and can realize remote control and management through the management computer;
6) After the power is cut off, the channel is automatically normally open (in compliance with fire protection requirements), and automatically closed when it is powered on;
| Size | 200*200*1020mm |
| Unlock time | 0.2 seconds |
| Traffic speed | 35p/m |
| 600-1100mm | 600-1100mm |
| Input voltage | 100-240V, 50/60HZ |
| Motor voltage | 24V |
| Ambient temperature | -25~+70 |
| Power | 35W |
| Open signal input | dry contact |
