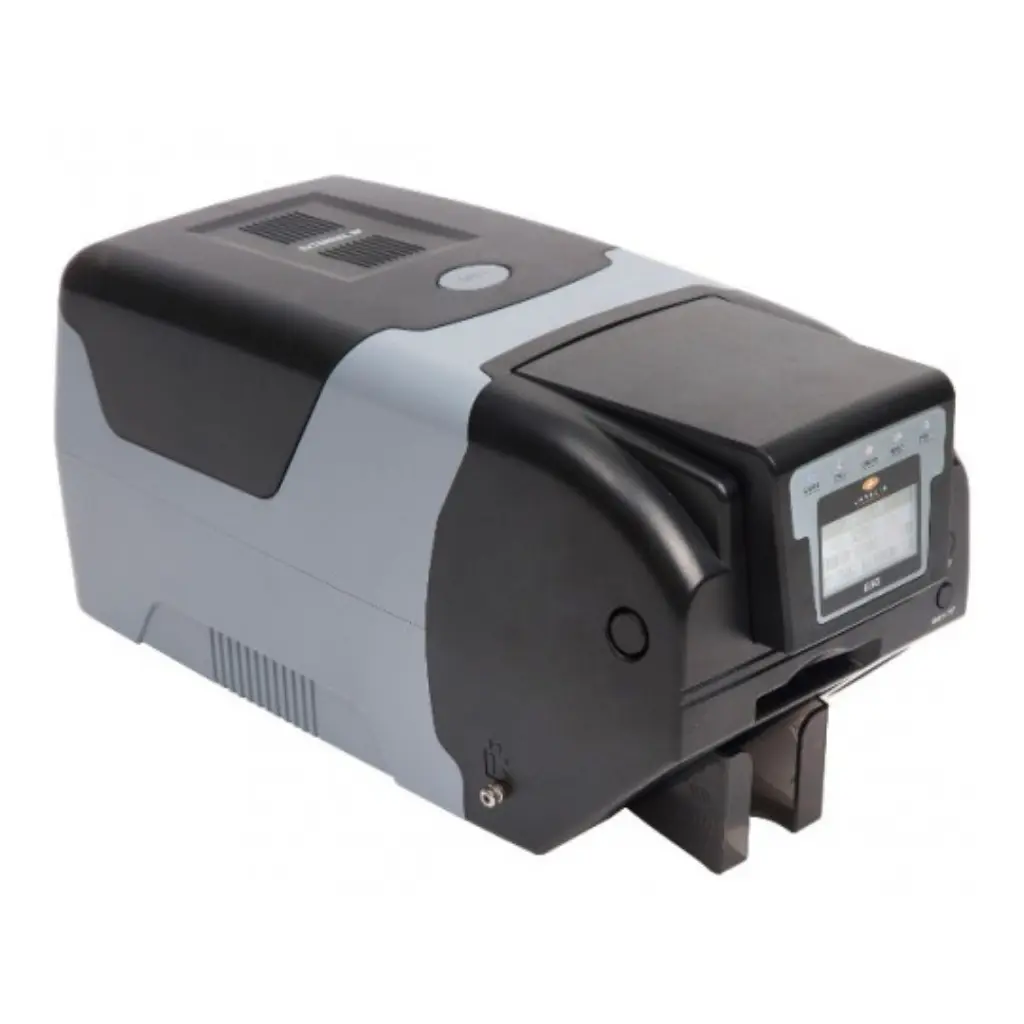

Javelin DNA J230i
The Javelin DNA J230i is an auto-fed color ID card printer equipped with an input hopper and output stacker, designed for smooth, efficient card issuance. It prints in full color or monochrome, and an optional flipper module enables dual-side printing for added flexibility.
Compact, reliable, and easy to operate, the J230i delivers outstanding performance for corporate IDs, student cards, access control cards, and membership badges. With a full range of encoding options, it provides an economical yet versatile solution for nearly every card printing and encoding requirement.
- Faster Print Speed: Up to 200 cards per hour (YMCKO)
- Enhanced LCD: Comprehensive menu with diagnostics for end users
- Quieter Operation: Smooth and low-noise print engine
- Improved Processing: Faster download and print times
The Javelin DNA J230i is designed for organizations that need reliable, fast, and professional ID card printing in a compact desktop format. With its high-resolution direct-to-card engine, it produces vibrant, full-color cards with sharp images and consistent quality – perfect for employee badges, student IDs, and membership cards.
Engineered for efficiency, the J230i offers modular upgrade options, easy operation via its intuitive interface, and energy-efficient performance, ensuring smooth, hassle-free daily printing.
Ideal for modern workplaces across the UAE, the Javelin DNA J230i combines speed, precision, and reliability, making it a practical, future-ready choice for offices, schools, and organizations that require secure, professional ID card issuance.
Print Mode: Single-side printing (option: dual-side printing)
Print Method: Thermal transfer (mono), Dye-sublimation (colour)
Print Speed:
Mono: 550 cph
YMCKO: 170 cph (single-side)
YMCKOK: 140 cph (dual-side)
Ribbons:
KrO: 500 prints/roll
YMCKO: 200 prints/roll
YMCKOK: 167 prints/roll
Half-panel YMC + full-panel KO: 300 prints/roll
Monochrome (black, silver, gold, red, blue, white, scratch-off): 1000 prints/roll
Card Encoding Options:
Magnetic Stripe: ISO7811 (tracks 1,2,3); Hi-Co/Lo-Co; Head life – 4,000,000 passes
Contact (IC): ISO 7816, EMV, PC/SC; IC contact life – 1,000,000 passes
Contactless (RF): MiFare, ISO 14443 A,B, ISO15693
Warranty: 30 months printer and print head (unlimited passes subject to normal usage)
Printer Interfaces: USB 2.0, internal USB hub, built-in Ethernet (10/100Mps), RS232 network
Software Drivers: Windows 2000, XP, Server 2003/2008, Vista, Windows 7, Windows 8
Fonts / Images: 300 dpi (11.8 dots/mm), 16.7 million colours, True Type fonts via Windows drivers
Barcodes: Code 39, Code 128 B & C, 2 of 5 interleaved, UPC-A, EAN-8 & EAN-13, PDF-417 2D, QR code
Card Capacity: Input hopper: 100 cards; Output stacker: 70 cards; Single card feeding included
Dimensions:
Single-side: 403 × 202 × 192 mm (15.8” × 8.0” × 7.6”)
Dual-side: 471 × 202 × 192 mm (18.5” × 8.0” × 7.6”)
Weight:
Single-side: 5.0 kg / 11 lbs
Dual-side: 5.5 kg / 12.1 lbs
Power Source: Input: 100–240V, 50/60Hz; Output: DC 24V (FCC Class B, CE, UL & CUL approved)
CPU & RAM: 32-bit processor, 128MB RAM
Environment:
Operating: 0–50°C / 32–122°F, 20–90% RH
Storage: -25–70°C / -13–158°F
Built-in Security: Kensington® ClickSafe™ security anchor; optional locking input hopper
Compact, High-Quality ID Card Printing for Everyday Use
The Javelin DNA J230i is designed for organizations that need reliable, fast, and professional ID card printing in a compact desktop format. With its high-resolution direct-to-card engine, it produces vibrant, full-color cards with sharp images and consistent quality – perfect for employee badges, student IDs, and membership cards.
Engineered for efficiency, the J230i offers modular upgrade options, easy operation via its intuitive interface, and energy-efficient performance, ensuring smooth, hassle-free daily printing.
Ideal for modern workplaces across the UAE, the Javelin DNA J230i combines speed, precision, and reliability, making it a practical, future-ready choice for offices, schools, and organizations that require secure, professional ID card issuance.
