Flap Turnstile: UT-FLA-5707

Description

◆ Size: 1200*380*980mm
◆ Flap opening/closing time: 0.2
◆ Material: 304 # stainless steel
◆ Thickness: Head 1.5mm, Cabinet:1.2mm
◆ MCBF: 5 million cycles
◆ Speed: 35 person/min adjustable
◆ Passage width: ≤600 mm
◆ Direction: Bi-directional
◆ Motor: 24V / 30W brushless
◆ Infrared sensor: 3 pairs
◆ Adaptation humidity: 5% – 90%

Availability : Ex-Stock, Prior to sales

Description

The UZ-800’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection; only the authorized person can operate; Sound & LED alarm: Both Side LED indicators, easily show where the metal is, Automatically count passengers, and alarm times.

Walk Through Metal Detector: UZ800



1. Shell processing technology: using laser, bending, cutting, welding, polishing, polishing, and other processes.2. Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system).3. Operating environment Indoor/outdoor (Shelter)4. Adopt a High-level full-automatic intelligent mechanism, Brushless DC motor, and System operation stable with low noise.5. Anti-pinch and anti-collision function, Automatical control system, Power board, Passage LED indicator, Passage Mode setting.6. Anti-shock function, the swing arm is automatically locked when no open signal is received.7. The power off the flap is automatically opened and automatically closed when it is powered, which meets the fire protection requirements.8. With time protection and automatical reset function9. Unified electrical interface, which Can be connected with reading and writing equipment.10. Automatical control system, Power board, Passage LED indicator, Passage Mode setting.11. Using a standard electrical interface, it can easily integrate magnetic stripe cards, barcode card, ID card, IC card, ID cards and other card readers on the device.

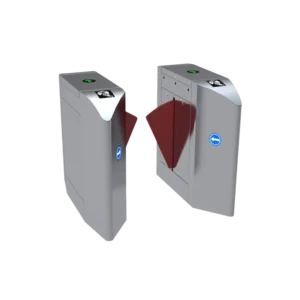

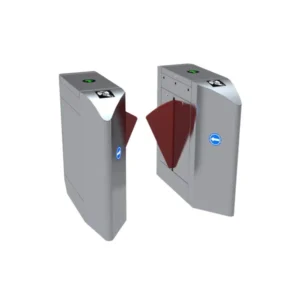

Security Semi-automatic Flap Turnstile with Access Control: UT560-CSecurity Semi-automatic Flap Turnstile with Access Control: UT560-CSecurity Semi-automatic Flap Turnstile with Access Control: UT560-C
Security Semi-automatic Flap Turnstile with Access Control: UT560-C
Security Semi-automatic Flap Turnstile with Access Control: UT560-C
Security Semi-automatic Flap Turnstile with Access Control: UT560-CSecurity Semi-automatic Flap Turnstile with Access Control: UT560-C

Product package

Security Semi-automatic Flap Turnstile with Access Control: UT560-C

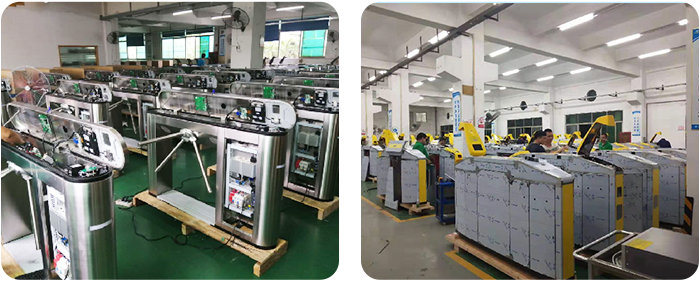

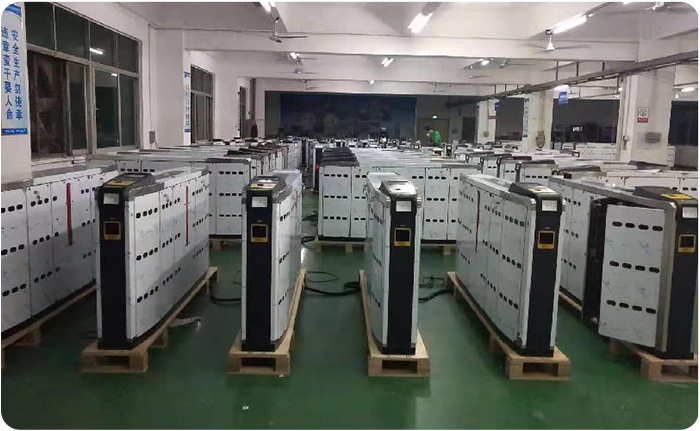

Factory shots

Security Semi-automatic Flap Turnstile with Access Control: UT560-CSecurity Semi-automatic Flap Turnstile with Access Control: UT560-CSecurity Semi-automatic Flap Turnstile with Access Control: UT560-C

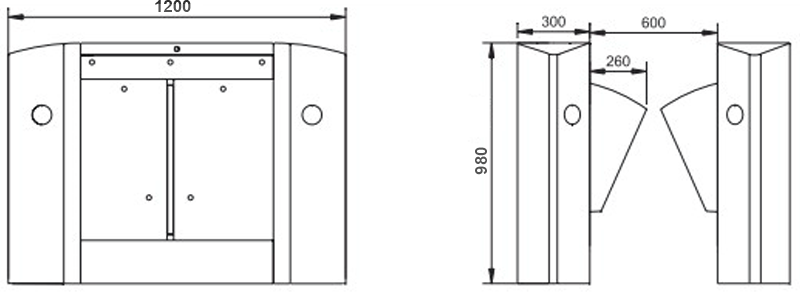

Size 1200*380*980mm
Flap opening/closing times0.2
Material304 # stainless steel
Thickness: Head1.5mm, Cabinet:1.2mm
MCBF5 million cycles
Speed35 person/min adjustable
Passage width≤600 mm
Direction Bi-directional
Motor24V / 30W brushless.
Infrared sensor 3 pairs
Adaptation humidity5% – 90%
