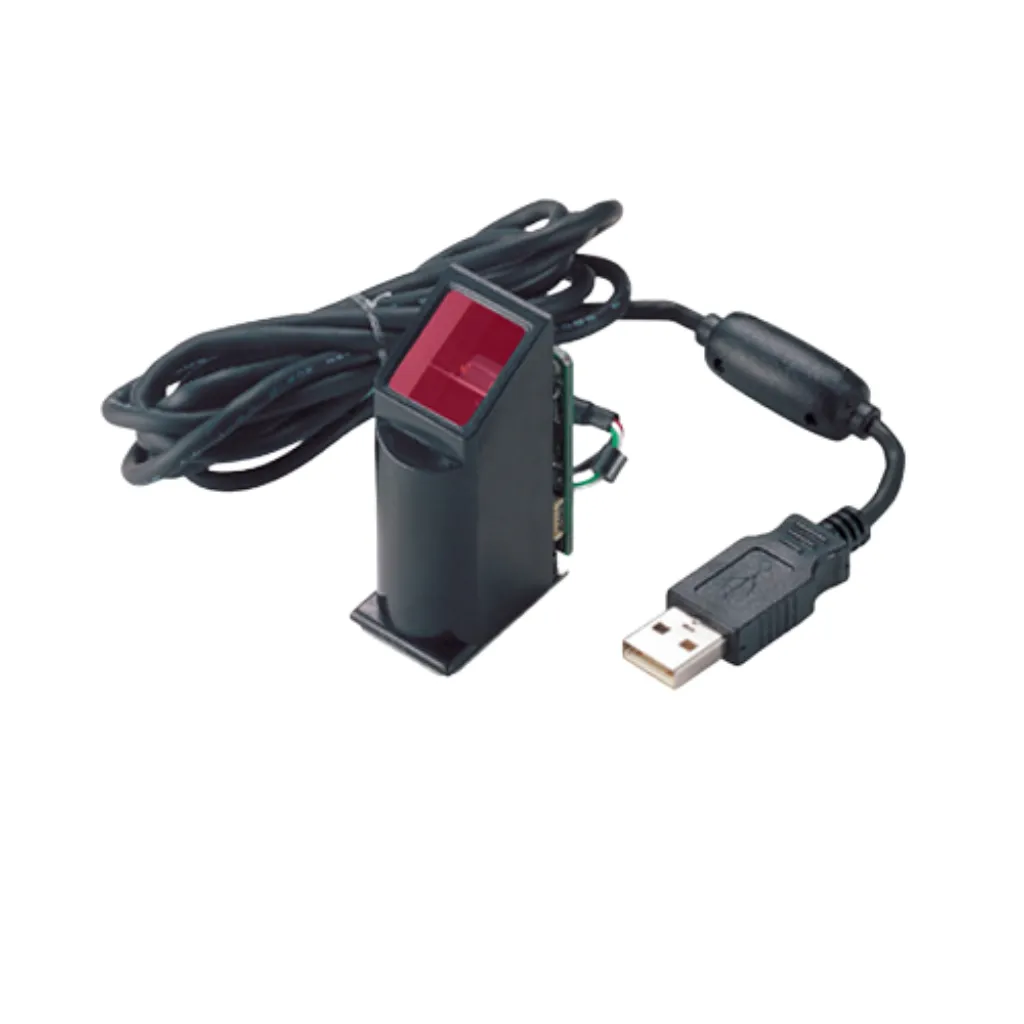

Fingerprint FDU08
Nitgen FDU08 with FBI PIV Certification has been certified as safe, reliable, secure and meet the requirements for biometric technology of Commission of Information Technology and Electronics India standards and the FBI-PIV STQC. – Supports multiple operating systems: Windown, Linux, USB interface is compact and easy to use. Equipped with anti-fingerprint sensor, anti-scratch, shock, vibration, electric shock. Interfaces and formats of images according to international standards: WQS Compression, ISO 19794-2 / ??4, ANSI 378, NFIQ. High quality image capture, dry / wet fingerprint authentication. Specifications NITGEN eNbioAccess-C1.
Availability : Ex-Stock, Prior to sales
- Additional information
- Features
Additional information
| Industries | Energy & Utilities, Healthcare, Manufacturing, Public Sector, Retail |
|---|
-
Item Description FP Sensor   NITGEN OPU08 Supply Voltage   5V DC +/- 250mV Current Consumption   < 150mA Operating Temperature   -20 ~ 60 ℃ Storage Temperature   -20 ~ 70 ℃ Operating Humidity   RH 10 ~ 90% Cable Length   1600 mm Certification   FBI PIV, FIPS201, STQC, WHQL, KC, FCC, CE, RoHS, UL Item Description Hardness of Prism Surface   750Hk Resolution   500 +/- 10 [DPI] Platen Area   16 x 18 mm Effective Sensing Area   13.2 x 16.8 mm Effective Pixel Array   260 x 330 pixel Image Aspect Ratio   0.788 Non-linear Distortion of Image   < 3 % Resolution   8 bits / pixel (256 Gray Level) Item Description Power Source   Bus Power Current Consumption (Normal)   About 120mA Current Consumption (Standby)   < 5mA Current Capture (Capture Operation)   Max. 180mA ESD Tolerance   > +/- 8kV Item Description Interface   Universal Serial Bus Revision 2.0 Transfer Type   Bulk Mode Communication Speed   High Speed (480Mbps) / Full Speed(12Mbps) Image Capture Speed (High Speed)   About 130 ms/Frame Image Capture Speed (Full Speed)   About 530 ms/Frame
