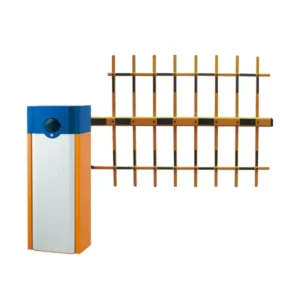

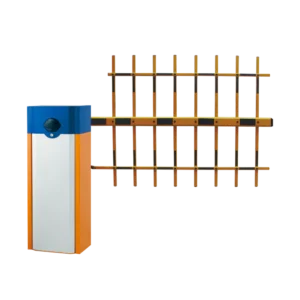

Boom Barrier Gate: UT-BMG-3007
Description
◆ Rated Voltage: AC90V~AC264V, DC24V,50/60HZ
◆ Speed Time: 1s,1.2s,3s,6s
◆ Housing Size: 340mm * 283mm * 950mm
◆ Remote Control Distance: ≤100 meter
◆ Boom Length: 3m to 6m (also customized available)
◆ Protection Grade: IP65
◆ Working Temperature: -35℃ to +75℃
◆ Power Supply: 110V/220V±10 % 50/60HZ
◆ Rated Power: 120W
◆ Open/Close Time: 1~6s
◆ Net Weight: 60KG
Availability : Ex-Stock, Prior to sales
- Description
- Product description
- Technical data
Description








Accessories
The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
Better surface treatment 2mm thick carbon steel with a smooth powder coated.
Unique temperature calefaction design for low-temperature use, prevent freezing in cold weather.
Standard is a carton box package. Wooden box package for option
Option Arm Boom Types
Suitable for scenes
They are widely used in parking lots, traffic, or toll system. Users can control the parking gate barrier with a remote controller or manual button, which is very convenient. It can be used in residential areas, traffic control, commercial building parking, shopping mall parking, industry, hotels, toll plaza, etc.
- The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
- The arm can be customized, with different types suitable for different installation environments according to height and width limit.
- Unique temperature calefaction design for low-temperature use prevents freezing in cold weather.
- Standard is a carton box package. Wooden box package for option
| Rated voltage | AC90V~AC264V, DC24V,50/60HZ |
| Speed Time | 1s,1.2s,3s,6s |
| Housing Size | 340mm * 283mm * 950mm |
| Remote Control Distance | ≤100 meter |
| Boom Length | 3m to 6m (also customized available) |
| Protection Grade | IP65 |
| Working Temperature | -35℃~65℃ |
| Power Supply | 110V/220V±10 % 50/60HZ |
| Rated Power | 120W |
| Open/Close Time | 1~6s |
| Net Weight | 60KG |
