BioMini Slim 2

BioMini Slim 2

BioMini Slim 2 complying with Windows Hello enables Window 10 user to authenticate
secure access to their devices, apps, online services and networks with just a fingerprint.

World’s slimmest
FAP 20 optical sensor

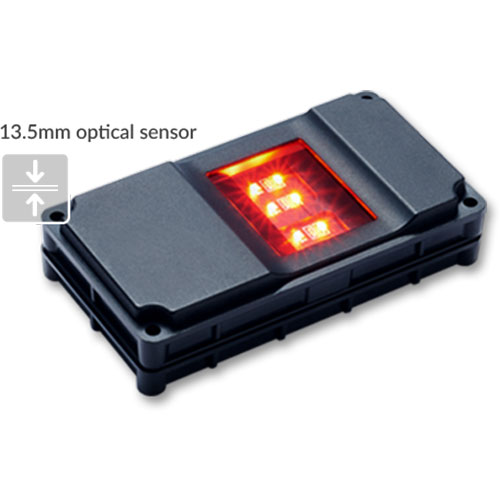

BioMini Slim 2 is the world’s thinnest 13.5 mm
FAP20 certified optical fingerprint scanner.

Download Brochure

Description

Multi Dynamic
Range (MDR) Technology
BioMini Slim 2 can acquire fingerprints regardless of external light or fingerprint conditions, applying Suprema’s proprietary MDR technology, an improvement on existing HDR technology. It can get normal fingerprints even under 100,000 LUX direct light, which is equivalent to direct sunlight.

FBI PIV and FBI Mobile ID
FAP20 certificates Image compression standard: WSQ BioMini Slim 2 is the world’s thinnest FBI PIV and FBI Mobile ID certified FAP20 optical scanner. The Scanner features a Large Platen that spans 16.5mm x 21.0mm wide, which is well above the FAP20 Standard that spans 15.2mm x 20.3mm.

Machine-learning based
Live Finger Detection(LFD)
Technology
BioMini Slim 2 provides advanced machine-learning based Live Finger Detection technology that distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.

Additional information

Industries

Energy & Utilities, Healthcare, Manufacturing, Public Sector, Retail

Reviews

There are no reviews yet.


Be the first to review “BioMini Slim 2”

World’s slimmest FAP 20 optical sensor
Multi Dynamic Range (MDR) technology
Operates under max 100,000 lux of direct sunlight
Advanced Live Fingerprint Detection (LFD) technology

FBI PIV and FBI Mobile ID FAP20 certificates
NIST certified interoperable image & template format standards (ANSI-378, ISO19794-2/4)
Image compression standard: WSQ

Live Fingerprint Detection (LFD) Technology
Distinguishes fake fingerprints made from various materials including
clay, rubber, silicon, glue, paper, film and more

Easy Integration

BioMini SDK for easy application development
Android, MS Windows & Linux compatible
Multi-threaded code design for multi-core CPU utilization

World’s best performing fingerprint algorithm
(Top results in NIST MINEX tests and FVC)
NIST certified interoperable image & template format standards
(ANSI-378/ISO 19794-2, ISO 19794-4)
Image Compression Standard (WSQ)
Fast matching speed : 100,000 match / second (with Intel Core2Duo)

No need to type in a password
Instant login by touching your finger

Sensor Type Optical
Resolution / Gray Scale 500 ppi / 256 levels
Platen Size 16.5 x 21.0 mm
Sensing Area 15.24 x 20.32 mm
Image Size 300 x 400 pixels
Image Certificate FBI PIV and FBI Mobile ID FAP 20
Template Format Suprema, ISO19794-2, ANSI 378
Image Format RAW, BMP, WSQ, ISO 19794-4
Live Fingerprint Detection Supported
IP Rating IP65(Sensor Surface)
Interface USB 2.0 High Speed
Hardware Operating Temperature -10 ~ 50°C
Operation Humidity 0 ~ 90% RH
Certification CE, FCC, KC, RoHS, CB, IEC62471, WEEE, REACH, WHQL
Dimensions(W x L x H) 72.8 x 40.7 x 18.5 mm
Weight 91g
Compatibility Operating System Windows XP, Vista, 7, 8, 8.1, 10 32/64bit
Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 4.1(Jelly Bean) and Above
