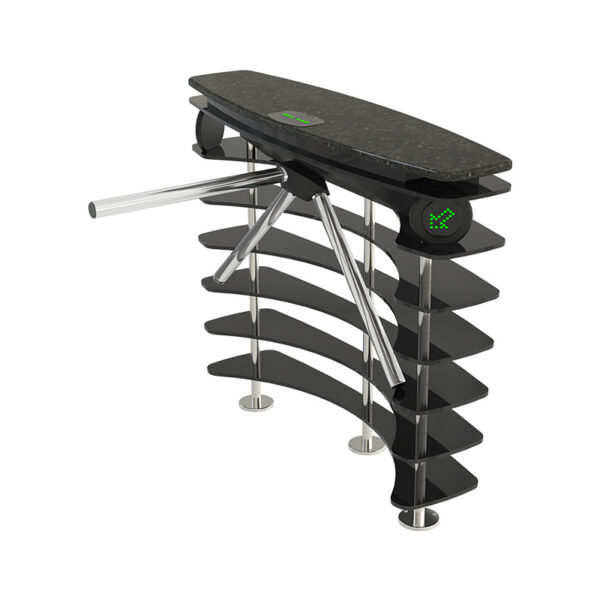

FKR 777 Turnstiles
With a unique combination of acrylic, granite and metal; a high grade artline serie tripod turnstile for locations aiming pedestrian access control and medium level security providing an exceptional architectural aesthetics.
Energy: 110/220 V – 60/50 Hz. AC (± 10%), 24 V DC. ~ 4,5W.Goose Instant ~ 13W.
Handles: Clear acrylic with 3 arms Ø40, each detachable individually. (Ops .: Stainless steel)
Dimensions: 900x1150x310 + Arm Length (470mm)
Weight: ~ 50 kg: Body Feature: Bottom body Art-Line design is smoked pexiglass sequential material. Cover is 20 mm thick natural granite (Star Galaxy Black)
- Description
- Reviews (0)
Description
Operating Temperature, Humidity, IP Class, Average number of failures without faults: (-20 ° C) – (+ 68 ° C) (Ops: -50 ° C with heat positivity), RH 95% (± 2%) non-condensing), IP 44, 1M switching.
Control System: Dry contact or TTL. CMOS. 5-48 v. can be controlled with any voltage between. It works in harmony with all kinds of access control and coin systems. Ops. RS. 232, RS. 485 or LAN (network) functions can be controlled.
Transition Speed: Mechanical Transition Capacity-For Standard Turnstiles: Max.97 pass / minute, Rated: 41 persons / minute. For motorized turnstiles: Max 48 passes / minute, Rated: 29 persons / minute. The first movement is less than 0.3 seconds.
eTop Solution, Leading supplier in united Arab Emirates and South African Countries (Nigeria, South Africa, Sudan, Kenya, Uganda, Somalia, South Sudan, Central African Republic, Ethiopia, Tanzania, Saudi Arabia, Oman, Kuwait, Bahrain, and Qatar) for Wacom Signature pad, Fargo Card Printer, Javelin Card Printer, OZAK Turnstile and Speed gates.
